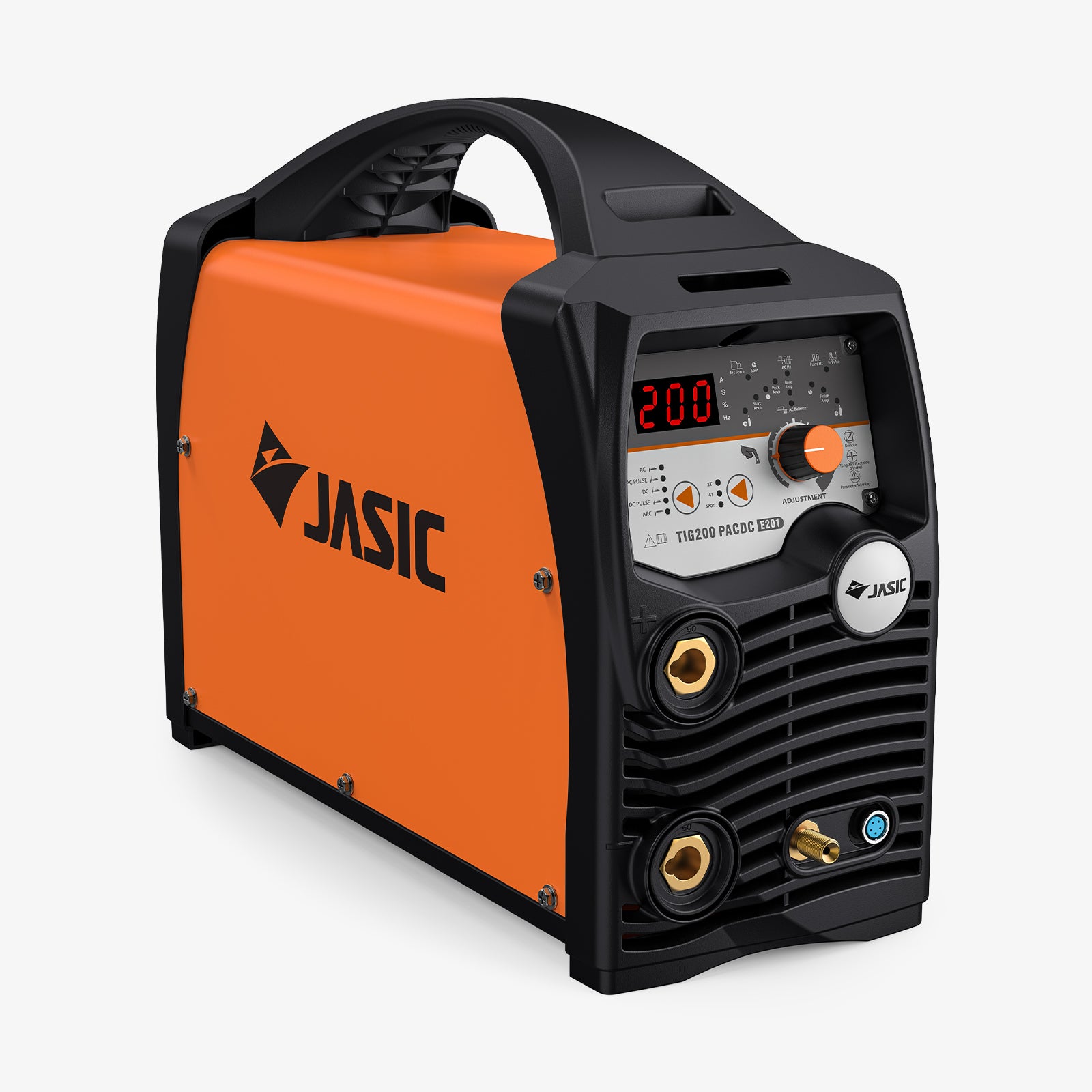

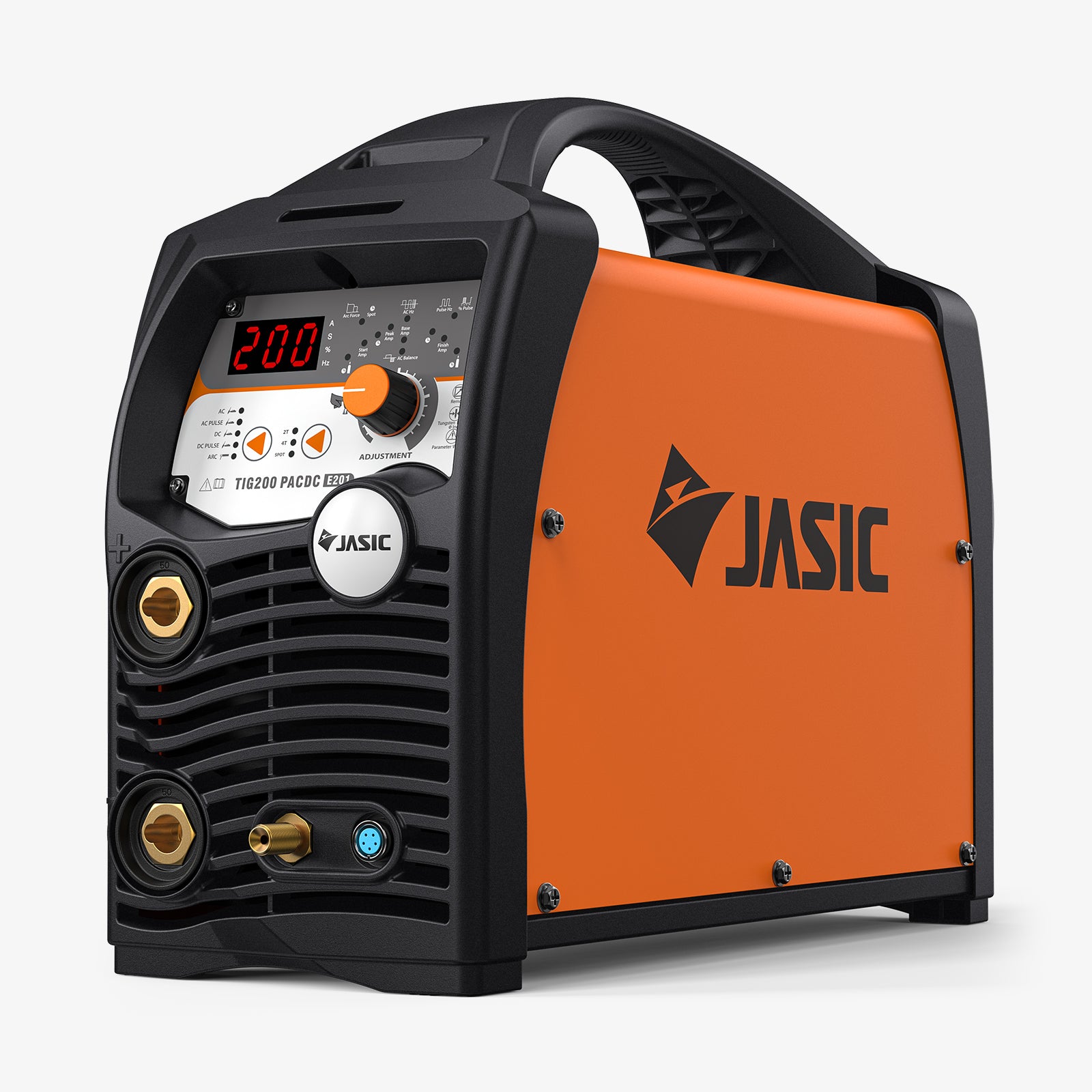

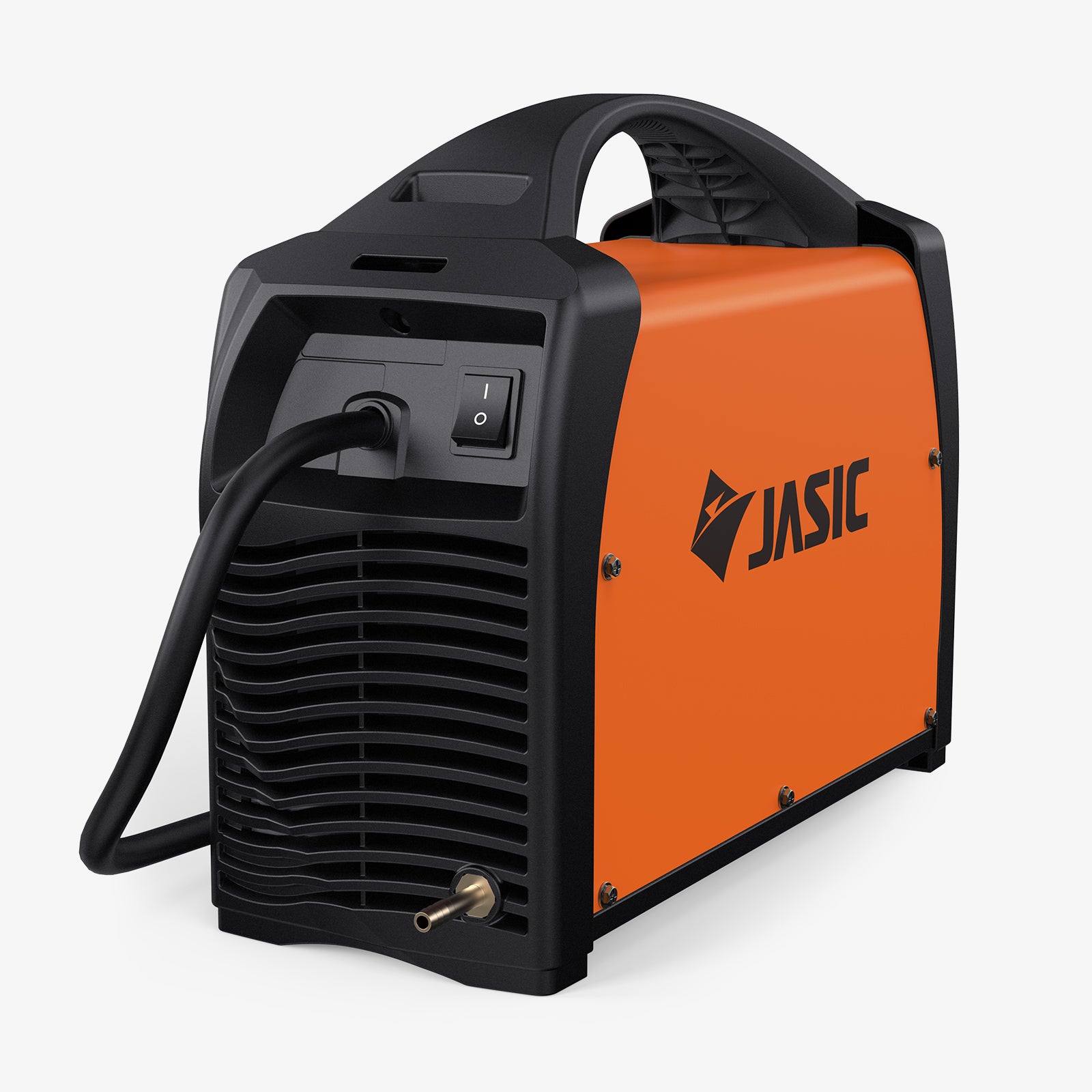

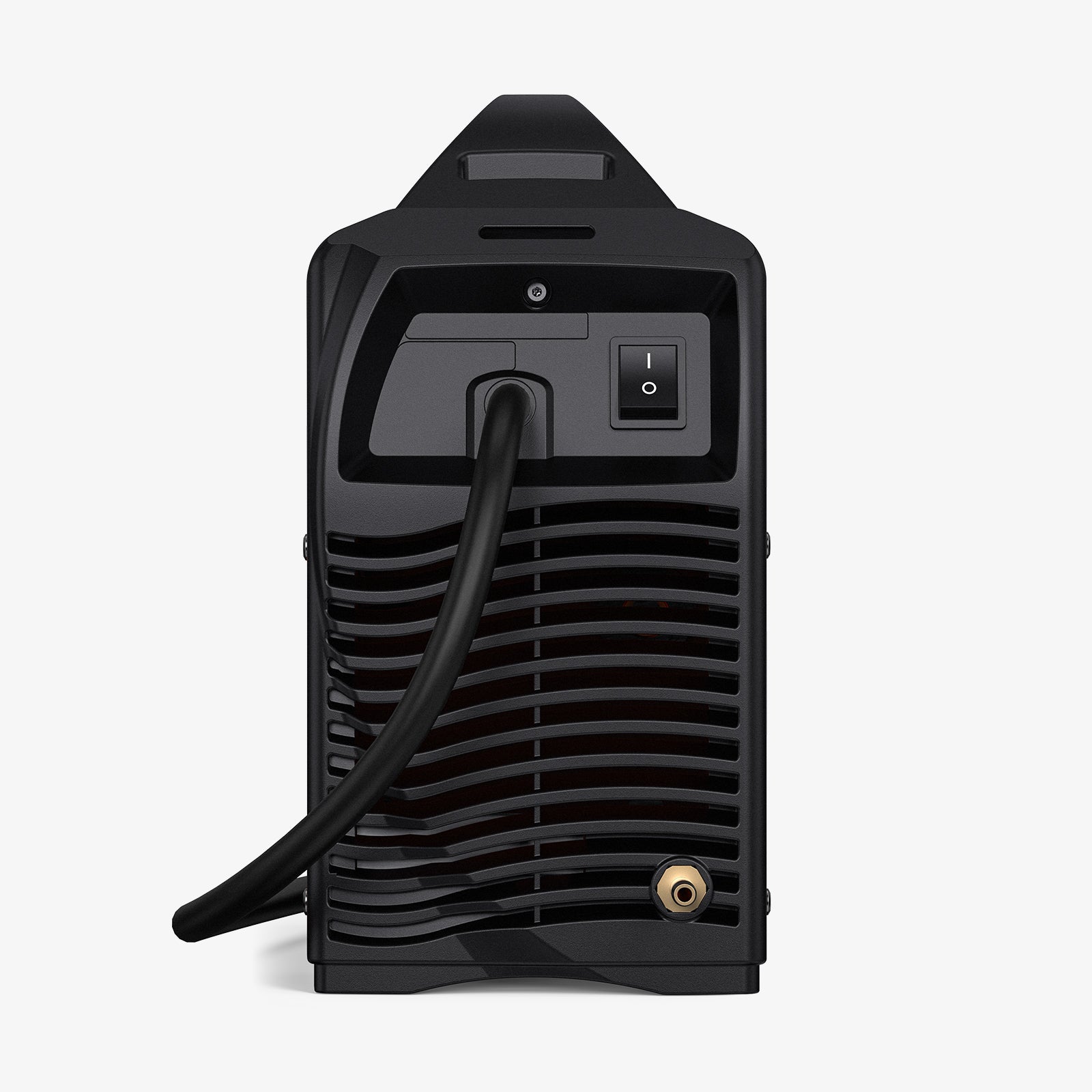

JASIC PRO TIG200 PACDC Pulse TIG Welder for Aluminum
- Weld aluminum, stainless steel, and carbon steel with 200A AC/DC pulse power
- Handle thin-gauge fabrication and light industrial work with precise control
- Switch between 110V and 240V for home, shop, or jobsite use
- Adjust amperage in real time with remote control support
Key Features
Multi-Process: Switch between AC Pulse TIG for aluminum, DC Pulse TIG for stainless, and Stick mode for heavy steel repairs to handle diverse fabrication tasks with one machine
Dual-Voltage: Connect to 110V or 220V power sources to maintain productivity across household and industrial workspaces
Precision Pulse Control: Manage heat input and distortion on thin materials to achieve stable weld pools and consistent bead appearance
Remote Ready: Support wired or wireless foot pedals and torch controls to adjust amperage in real-time during complex welds
High-Density Mobile Design: Transport this compact unit easily between job sites without sacrificing duty cycle or structural durability
In The Box
- 1 x TIG200 PACDC TIG Welder
- 1 x Electrode Holder with Cable, 300A, 13 ft (4 m), 25 mm², 35-50 Dinse Connector
- 1 x Work Clamp with Cable, 300A, 13 ft (4 m), 25 mm², 35-50 Dinse Connector
- 1 x Power Adapter, 3.3 ft (1 m), 15A, 300V, NEMA 5-15P to 6-50R
- 1 x WP 26 TIG Torch, Air-Cooled, 200A, 13 ft (4 m)1 x Argon Flowmeter Regulator
- 1 x Tungsten Electrode, 3/32 in x 5.9 in (2.4 x 150 mm)
- 1 x PTFE Seal Tape, 5 g Roll
- 1 x Gas Hose Kit, 10 ft (3 m), Gas Fitting and Hose Clamp
- 1 x User Manual
Free Shipping on Orders Over $100
3-Year Warranty on All Equipment
30-Day Money-Back Guarantee
Full Customer & Technical Support
JASIC PRO TIG200 PACDC Pulse TIG Welder for Aluminum
Ultimate Welding
Dual-Voltage
Advanced IGBT Inverter Technology
Smart Fan
Built Tough for Daily Use
Extra Features
Remote Control
Adjust your amperage directly at the weld joint via wired or wireless remote, eliminating constant trips back to the machine and maximizing your arc-on time
Auto-Save Parameter Memory
Automatically stores your last used settings so you can resume work instantly after powering down
Specifications
Input Voltage
AC220V ±15% / AC115V ±15%, Single-Phase
Ieff (A)
14.8A @ 115V / 18A @ 220V
Imax (A)
21A @ 115V / 34A @ 220V
Open Circuit Voltage (OCV)
61V
Efficiency
85%
Power Factor
0.7
Protection Class
IP21S
Insulation Class
B
Dinse Connector
35/50
Standard
AS 60974-1
Warranty
3 Years
Weight
19.8 lbs
Dimensions (LxWxH)
21.2" x 9" x 16.2"
Suitable Materials
TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys
MMA: Mild Steel, Stainless Steel, Cast Iron
Welding Capacity
Aluminum: Up to 0.31 in (AC TIG / AC Pulse)
Stainless Steel: Up to 0.24 in (DC TIG / DC Pulse)
Carbon Steel: Up to 0.39 in (DC TIG or MMA)
TIG Ignition Type
High-Frequency
TIG Current Range
20-120A @ 115V / 50-200A @ 220V
TIG Voltage Range
10.2-14.8V @ 115V / 10.2-18V @ 220V
TIG Duty Cycle @ 25%
200A / 18V @ 220V
TIG Duty Cycle @ 60%
95A / 13.8V @ 115V
129A / 15.1V @ 220V
TIG Duty Cycle @ 100%
73A / 12.9V @ 115V
100A / 14V @ 220V
MMA Current Range
20-104A @ 115V / 20-160A @ 220V
MMA Voltage Range
20.4-24.4V @ 115V / 20.4-26.4V @ 220V
MMA Duty Cycle @ 30%
160A / 26.4V @ 220V
MMA Duty Cycle @ 60%
60A / 22.4V @ 115V
114A / 24.6V @ 220V
MMA Duty Cycle @ 100%
46.4A / 21.8V @ 115V
88A / 23.2V @ 220V
Arc Force Range
0-40A
MMA Electrode Range
Up to 1/8 in
Downloads
FAQs
What welding processes does TIG200 PACDC support?
TIG200 PACDC supports AC TIG, AC Pulse TIG, DC TIG, DC Pulse TIG, MMA/Stick welding, 2T/4T trigger modes, and spot welding modes. This gives you one machine for aluminum work, stainless steel fabrication, carbon steel welding, repair jobs, and general shop use.
Can TIG200 PACDC weld aluminum?
Yes. TIG200 PACDC is built for aluminum welding with AC TIG and AC Pulse TIG. It is a practical choice for aluminum fabrication, repair work, and jobs that need better puddle control and cleaner weld appearance.
What materials can TIG200 PACDC weld?
TIG200 PACDC is designed for aluminum, stainless steel, carbon steel, and alloy steel, depending on the welding mode and setup used. AC modes are suited for aluminum, while DC TIG and MMA are better for steel applications.
What is the benefit of pulse TIG on this machine?
Pulse TIG helps reduce heat input and gives you better control over the weld puddle. This helps reduce distortion, improve bead appearance, and make thin material welding easier to control.
What welding thickness can TIG200 PACDC handle?
TIG200 PACDC is positioned for:
Aluminum: up to 0.31 in (AC TIG / AC Pulse)
Stainless Steel: up to 0.24 in (DC TIG / DC Pulse)
Carbon Steel: up to 0.39 in (DC TIG or MMA)
Actual results depend on material type, joint design, and welding setup.
Can TIG200 PACDC run on both 115V and 220V power?
Yes. TIG200 PACDC supports dual voltage input, making it suitable for both 115V and 220V power environments. This gives you more flexibility for shops, garages, mobile service vehicles, and job sites.
Is TIG200 PACDC good for shop work and mobile welding?
Yes. TIG200 PACDC is built for workshops, garages, repair jobs, and mobile welding applications. Its compact body and dual-voltage flexibility make it easier to move and use in different work environments.
Does TIG200 PACDC support remote control?
Yes. TIG200 PACDC is compatible with a foot pedal or remote torch control. This allows real-time current adjustment for better control, improved precision, and greater comfort during welding.
What is the benefit of 2T and 4T trigger modes?
2T and 4T modes give you more control over torch operation. This helps improve comfort during longer welds and makes the machine easier to adapt to different welding habits and working positions.
Is TIG200 PACDC beginner-friendly or better for experienced welders?
TIG200 PACDC is better suited for users who want more control and more process flexibility. It works well for experienced welders, but it is also approachable for serious DIY users who want to grow into AC/DC TIG and multi-mode welding.
What warranty does TIG200 PACDC come with?
TIG200 PACDC comes with a 3-year warranty for added peace of mind. For full warranty terms, coverage details, and claim instructions, please visit our Warranty Policy page.
Can I return TIG200 PACDC if it is not the right fit for my needs?
Yes. We offer a 30-day hassle-free return policy. For full return eligibility, conditions, and refund details, please visit our Return & Refund Policy page.
Do you offer technical support after purchase?
Yes. If you need help with setup, operation, or troubleshooting, our support team is here to help. You can find contact details and support information on our Contact Us page.
