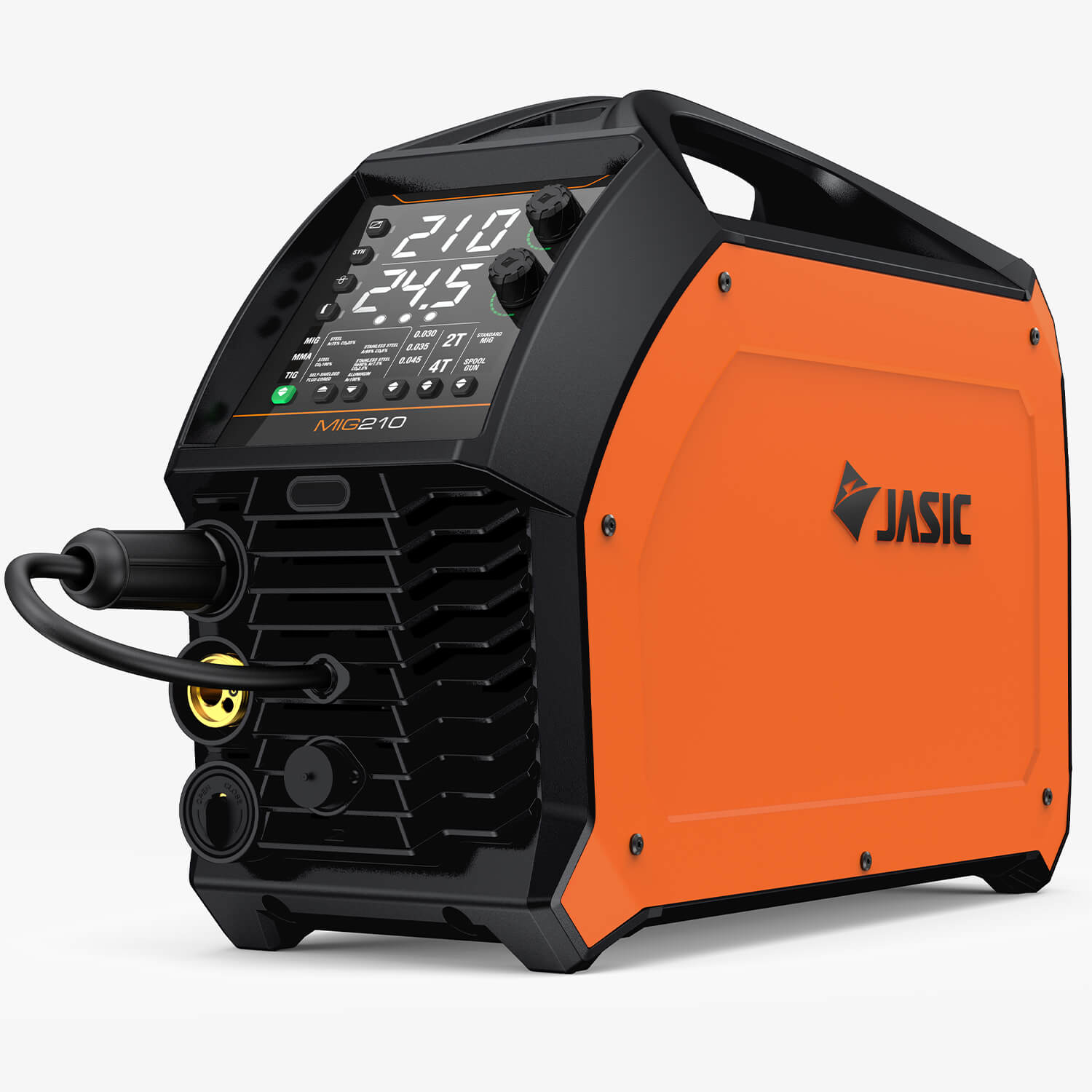

JASIC EVO20® MIG210 PFC Lift TIG/Stick/MIG Welder
0.99 Power Factor
95V-265V
Stick/Lift TIG/Flux Cored/Spot/MIG
Easy Set Up
- Maintain a stable arc on fluctuating generator power or long extension leads with a 95V-265V wide-voltage design.
- Select wire diameter through simple button-press control to match parameters faster and reduce setup guesswork.
- Handle automotive repair and light industrial fabrication with easier setup and more reliable daily performance.
- Weld mild steel, stainless steel, and aluminum with spool gun support in one versatile machine.
Key Features
PFC: Handle unstable input power more easily across a wide 95-265V voltage range. This helps the machine run more smoothly on grid or generator power
5-in-1 Multi-Process: Switch between Gas MIG, Flux-Cored, Lift TIG, Stick, and Spot MIG modes to handle diverse fabrication and repair tasks with one tool
Intelligent Synergic Control: Select wire diameter via button-press to automatically synchronize optimal welding parameters and eliminate guesswork
Welding Engineer Mode:Fine-tune advanced parameters to match the way you weld. Get a machine response that feels more natural in MIG, Lift TIG, and MMA work
Digital Inductance Control: Fine-tune the arc cone and droplet transfer to minimize spatter and manage heat input on sensitive thin-gauge materials
ClearVision Technology: Monitor critical parameters on a high-definition screen designed for total readability in both dark workshops and glare-free outdoor sunlight
Geared Wire Drive System: Drive wire consistently and smoothly. It delivers superior pushing power to ensure reliable feeding, even when operating with longer torches
Patented ABAP Technology: Isolate sensitive internal electronics from job site dust through independent airflow channels to maximize service life
Remote Control：Stay focused on the weld instead of going back and forth to change settings. This helps save time and improve workflow on daily jobs
In The Box
- 1 x MIG210 PFC MIG Welder
- 1 x V-Knurled Drive Roll, 0.030-0.035 in (0.8-1.0 mm)
- 1 x Work Clamp with Cable, 300A, 13 ft (4 m), #4 AWG (25 mm²), 35-50 Dinse Connector
- 1 x Electrode Holder with Cable, 300A, 13 ft (4 m), #4 AWG (25 mm²), 35-50 Dinse Connector
- 1 x MB 15 MIG Gun, 10 ft (3 m)
1 x Hose Clamp, 0.354-0.630 in (9-16 mm) - 1 x 9-Pin Aviation Plug, Male, 5A / 500V
- 1 x Gas Hose, 8 ft (2.5 m), Black
- 6 x Contact Tips: 0.023 / 0.030 / 0.035 in (0.6 / 0.8 / 1.0 mm), 2 each
- 2 x Gas Nozzles
- 1 x Argon Flowmeter Regulator
- 1 x User Manual
Free Shipping on Orders Over $100
3-Year Warranty on All Equipment
30-Day Money-Back Guarantee
Full Customer & Technical Support
JASIC EVO20® MIG210 PFC Lift TIG/Stick/MIG Welder
CLEARVISION HD DISPLAY
Multi-Process
Power Factor Correction (PFC)
Synergic Control
Digital Inductance Control
Advanced IGBT Inverter Technology
ABAP Tech
Smart Fan
Built Tough
Remote Control
Extra Features
LED-Lit Cabinet
Change wire more easily in low-light spaces with the built-in cabinet LED. An internal storage box also keeps spare contact tips and drive rolls organized and close at hand
Quick Factory Reset
Reset settings instantly and start fresh. One-click factory reset helps recover from setup mistakes fast, so you can get back to welding without wasting time
Auto-Sleep Mode
Reduce idle power draw automatically when the machine is not welding. Auto-sleep helps cut energy waste and keeps standby consumption as low as 4-14W
Overheat & Overcurrent Protection
Protect the machine during demanding welding work with built-in overheat and overcurrent protection. This helps protect internal components
Specifications
Input Voltage
AC95V-265V, Single-Phase
Ieff (A)
MIG: 16A @ 115V / 12.8A @ 230V
TIG: 11.9A @ 115V / 9.7A @ 230V
MMA: 14.3A @ 115V / 12.5A @ 230V
Imax (A)
MIG: 35A @ 115V / 29.5A @ 230V
TIG: 23.7A @ 115V / 19.1A @ 230V
MMA: 28.5A @ 115V / 25A @ 230V
Open Circuit Voltage (OCV)
67V
Open Circuit Voltage with VRD Active (V)
10.1V
Efficiency
MIG: 80.5% @ 115V / 84.3% @ 230V
TIG: 80.5% @ 115V / 82.9% @ 230V
MMA: 85.2% @ 115V / 87.2% @ 230V
Power Factor
0.99
Protection Class
IP21S
Insulation Class
B
Rated Input Power (kVA)
MIG: 3.65 kVA @ 115V / 6.10 kVA @ 230V
TIG: 2.71 kVA @ 115V / 4.66 kVA @ 230V
MMA: 3.15 kVA @ 115V / 5.61 kVA @ 230V
Dinse Connector
35/50
Standard
AS 60974-1
Warranty
3 Years
Weight
37.04 lbs
Dimensions (LxWxH)
26.8" x 12.6" x 22.2"
Suitable Materials
Mild Steel, Stainless Steel, Aluminum, and more
MIG Current Range
30-140A @ 115V / 30-210A @ 230V
MIG Voltage Range
15.5-21V @ 115V / 15.5-24.5V @ 230V
MIG Duty Cycle @ 25%
140A / 21V @ 115V
210A / 24.5V @ 230V
MIG Duty Cycle @ 60%
90A / 18.5V @ 115V
136A / 20.8V @ 230V
MIG Duty Cycle @ 100%
70A / 17.5V @ 115V
105A / 19.3V @ 230V
MIG Wire Spool Sizes
5 kg (11 lb), 1kg(2.2lb)
Wire Feed Speed Range(Inch/Min)
79-512 @ 115V / 79-591 @ 230V
TIG Ignition Type
Lift TIG
TIG Current Range
20-110A @ 115V
20-180A @ 230V
TIG Voltage Range
20.8-24.4V @ 115V
20.8-27.2V @ 230V
TIG Duty Cycle @ 25%
110A / 24.4V @ 115V
180A / 27.2V @ 230V
TIG Duty Cycle @ 60%
71A / 22.8V @ 115V
116A / 24.6V @ 230V
TIG Duty Cycle @ 100%
55A / 22.2V @ 115V
90A / 23.6V @ 230V
MMA Current Range
5-140A @ 115V
5-210A @ 230V
MMA Voltage Range
10.2-15.6V @ 115V
10.2-18.4V @ 230V
MMA Duty Cycle @ 25%
140A / 15.6V @ 115V
210A / 18.4V @ 230V
MMA Duty Cycle @ 60%
140A / 15.6V @ 115V
210A / 18.4V @ 230V
MMA Duty Cycle @ 100%
70A / 12.8V @ 115V
105A / 14.2V @ 230V
Arc Force Range
0-100A
Hot Start Current Range
0-60A
FAQs
What welding processes does MIG210 PFC support?
MIG210 PFC supports gas MIG, flux core MIG, Lift TIG, and MMA/Stick welding. It also supports an optional spool gun for aluminum welding, giving you more flexibility for repair work, fabrication, and daily shop use.
Does PFC help with unstable power or generator use?
Yes. PFC helps MIG210 PFC handle unstable input power more effectively and supports a 95-265V wide input voltage range, making it easier to run on fluctuating grid power or generator power. This helps improve welding stability for field work, outdoor jobs, and other locations where power conditions are less predictable.
.
Can MIG210 PFC weld aluminum?
Yes. MIG210 PFC supports an optional spool gun, which makes it suitable for aluminum welding. This is useful for aluminum repair, light fabrication, and jobs where better aluminum wire feeding is needed.
What thickness range is MIG210 PFC recommended for?
MIG210 PFC is positioned for a recommended welding thickness range of 1-10 mm, depending on the welding process, material, and setup used.
Is MIG210 PFC suitable for small shops and repair work?
Yes. MIG210 PFC is a practical choice for small shops, auto repair, maintenance work, metal fabrication, and installation jobs. It is designed for users who need more flexibility than a basic entry-level MIG welder.
Why choose MIG210 PFC over a basic MIG welder?
MIG210 PFC gives you more than basic MIG welding. It combines IGBT inverter technology,PFC( 95-265V input), synergic setup, multiple welding processes, spool gun support, HD displays, independent airflow design(ABAP Tech), and smart fan in one machine. Built on a stronger hardware platform, it delivers more stable output, broader job coverage, and better performance in real working conditions.
What warranty does MIG210 PFC come with?
MIG210 PFC is covered under our 3-Year warranty policy. For full warranty terms, coverage details, and claim instructions, please visit our Warranty Policy page.
How do I make a warranty claim?
To start a warranty claim, please contact our customer support team with your order number, machine model, and a short description of the issue. For full steps and warranty details, please visit our Warranty Policy page.
Do you offer technical support after purchase?
Yes. If you need help with setup, operation, or troubleshooting, please visit our Contact Us page for support details.
