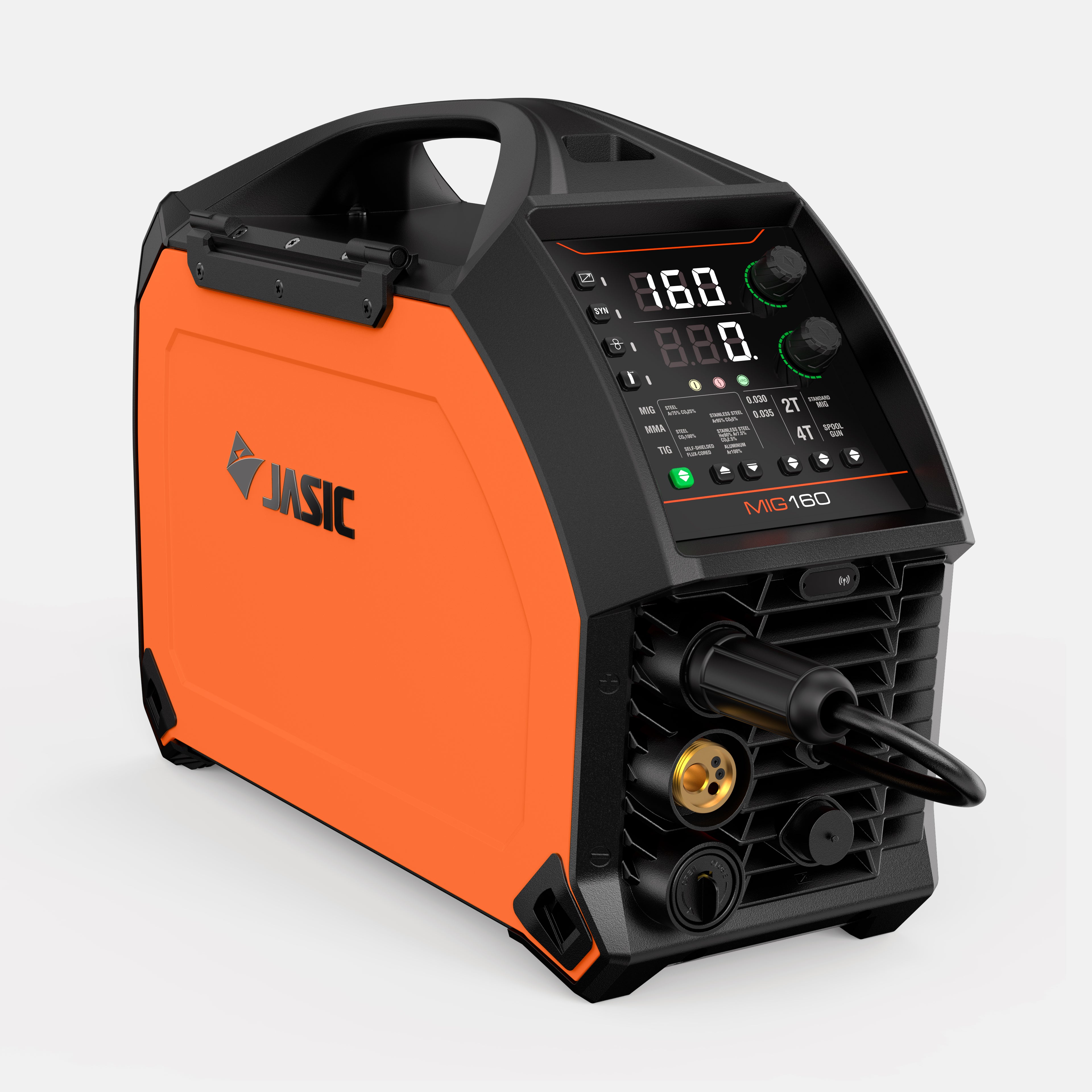

JASIC EVO20® MIG160 PFC Synergic 5 In 1 MIG Welder
JASIC MIG160 PFC MIG Welder gives you MIG gas, flux core, Lift TIG, MMA, and Spot MIG capability in one compact unit.
PFC and wide-voltage input help the machine run more steadily across 95V-265V power, even when input power fluctuates. Synergic control, digital settings, and a large clear screen make setup easier for beginners while giving experienced welders more control for repair, fabrication, and mobile work.
Key Features
PFC: Work across 95V-265V input range for better power adaptability in shops, garages, and field job
Multi-Process: Switch between MIG gas, flux core, Lift TIG, MMA, and spot MIG options to handle more work with one machine
Synergic Setup: Dial in settings faster and cut setup guesswork, especially on daily repair and light fabrication jobs
Welding Engineer Mode:Fine-tune settings to match the way you weld. Adapt the machine to different materials and welding conditions.
Clear Digital Display: Read parameters easily and adjust settings faster during setup and welding
Aluminum Ready: Add a spool gun for aluminum work and expand job range without stepping up to a larger machine
Digital Inductance Control: Fine-tune arc feel and puddle control for different materials and welding conditions
Remote Control Ready: Add wired or wireless remote control or a foot pedal for more flexible operation
In The Box
- 1 x MIG160 PFC MIG Welder
- 1 x V-Knurled Drive Roll, 0.030-0.035 in (0.8-1.0 mm)
- 1 x Work Clamp with Cable, 300A, 13 ft (4 m), #4 AWG (25 mm²), 35-50 Dinse Connector
- 1 x Electrode Holder with Cable, 300A, 13 ft (4 m), #4 AWG (25 mm²), 35-50 Dinse Connector
- 1 x MB 25 MIG Gun, 10 ft (3 m), 230A
- 2 x Hose Clamps
- 1 x 9-Pin Aviation Plug, Male, 5A / 500V
- 1 x Gas Hose, 8 ft (2.5 m), Black
- 6 x Contact Tips: 0.023 / 0.030 / 0.035 in (0.6 / 0.8 / 1.0 mm), 2 each
- 2 x Gas Nozzles
- 1 x Argon Flowmeter Regulator
- 1 x User Manual
Free Shipping on Orders Over $100
3-Year Warranty on All Equipment
30-Day Money-Back Guarantee
Full Customer & Technical Support
JASIC EVO20® MIG160 PFC Synergic 5 In 1 MIG Welder
Extra Features
LED-Lit Cabinet
Change wire more easily in low-light spaces with the built-in cabinet LED. An internal storage box also keeps spare contact tips and drive rolls organized and close at hand
Quick Factory Reset
Reset settings instantly and start fresh. One-click factory reset helps recover from setup mistakes fast, so you can get back to welding without wasting time
Auto-Sleep Mode
Reduce idle power draw automatically when the machine is not welding. Auto-sleep helps cut energy waste and keeps standby consumption as low as 4-14W
Overheat & Overcurrent Protection
Protect the machine during demanding welding work with built-in overheat and overcurrent protection. This helps protect internal components
Specifications
Input Voltage
AC95V-265V, Single-Phase
Ieff (A)
MIG: 16A @ 115V / 11A @ 230V
TIG: 8.9A @ 115V / 7.9A @ 230V
MMA: 13.8A @ 115V / 10.1A @ 230V
Imax (A)
MIG: 29.2A @ 115V / 20A @ 230V
TIG: 16.4A @ 115V / 14.4A @ 230V
MMA: 25.3A @ 115V / 18.5A @ 230V
Open Circuit Voltage (OCV)
67V
Open Circuit Voltage with VRD Active (V)
10.1V
Efficiency
MIG: 80.5% @ 115V / 84.3% @ 230V
TIG: 80.5% @ 115V / 82.9% @ 230V
MMA: 85.2% @ 115V / 87.2% @ 230V
Power Factor
0.99
Protection Class
IP21S
Insulation Class
B
Rated Input Power (kVA)
MIG: 3.03 kVA @ 115V / 4.25 kVA @ 230V
TIG: 1.79 kVA @ 115V / 3.24 kVA @ 230V
MMA: 3.00 kVA @ 115V / 4.21 kVA @ 230V
Dinse Connector
35/50
Standard
AS 60974-1
Warranty
3 Years
Weight
37.04 lbs
Dimensions (LxWxH)
26.8" x 12.6" x 22.2"
Suitable Materials
Mild Steel, Stainless Steel, Aluminum, and more
MIG Current Range
30-120A @ 115V / 30-160A @ 230V
MIG Voltage Range
15.5-20V @ 115V / 15.5-22V @ 230V
MIG Duty Cycle @ 30%
120A / 20V @ 115V
160A / 22V @ 230V
MIG Duty Cycle @ 60%
86A / 18.3V @ 115V
114A / 19.7V @ 230V
MIG Duty Cycle @ 100%
66A / 17.3V @ 115V
88A / 18.4V @ 230V
MIG Wire Spool Sizes
5 kg (11 lb), 1kg(2.2lb)
Wire Feed Speed Range(Inch/Min)
79-433 @ 115V / 79-551 @ 230V
TIG Ignition Type
Lift TIG
TIG Current Range
20-100A @ 115V
20-140A @ 230V
TIG Voltage Range
20.8-24.0V @ 115V
20.8-25.6V @ 230V
TIG Duty Cycle @ 30%
100A / 24.0V @ 115V
140A / 25.6V @ 230V
TIG Duty Cycle @ 60%
71A / 22.8V @ 115V
100A / 24.0V @ 230V
TIG Duty Cycle @ 100%
55A / 22.2V @ 115V
77A / 23.0V @ 230V
MMA Current Range
5-100A @ 115V
5-160A @ 230V
MMA Voltage Range
10.4-14.0V @ 115V
10.4-16.4V @ 230V
MMA Duty Cycle @ 30%
100A / 14.0V @ 115V
160A / 16.4V @ 230V
MMA Duty Cycle @ 60%
71A / 12.8V @ 115V
114A / 14.0V @ 230V
MMA Duty Cycle @ 100%
55A / 12.2V @ 115V
88A / 13.5V @ 230V
Arc Force Range
0-100A
Hot Start Current Range
0-60A
FAQs
What welding processes does MIG160 PFC support?
MIG160 PFC supports gas MIG, flux core MIG, Lift TIG, MMA/Stick welding, and an optional spool gun for aluminum welding. This gives you one machine for repair work, fabrication, maintenance, and light field jobs.
Does PFC help with unstable power or generator use?
Yes. PFC helps MIG160 PFC handle unstable input power more effectively and supports a 95-265V wide input voltage range, making it easier to run on fluctuating grid power or generator power. This helps improve welding stability for field work, outdoor jobs, and locations where power conditions are less predictable.
Is MIG160 PFC beginner-friendly?
Yes. MIG160 PFC includes synergic control, which makes setup easier by reducing guesswork. This helps beginners get started faster and also saves time for experienced welders on routine jobs.
What kind of jobs is MIG160 PFC best for?
MIG160 PFC is a practical choice for home repair, DIY welding, garage work, farm repair, small fabrication, onsite service, and outdoor maintenance jobs. It is built for users who need more flexibility than a basic MIG welder.
What thickness range is MIG160 PFC recommended for?
MIG160 PFC is positioned for a recommended welding thickness range of 1-6 mm, depending on the welding process, material, and setup used.
