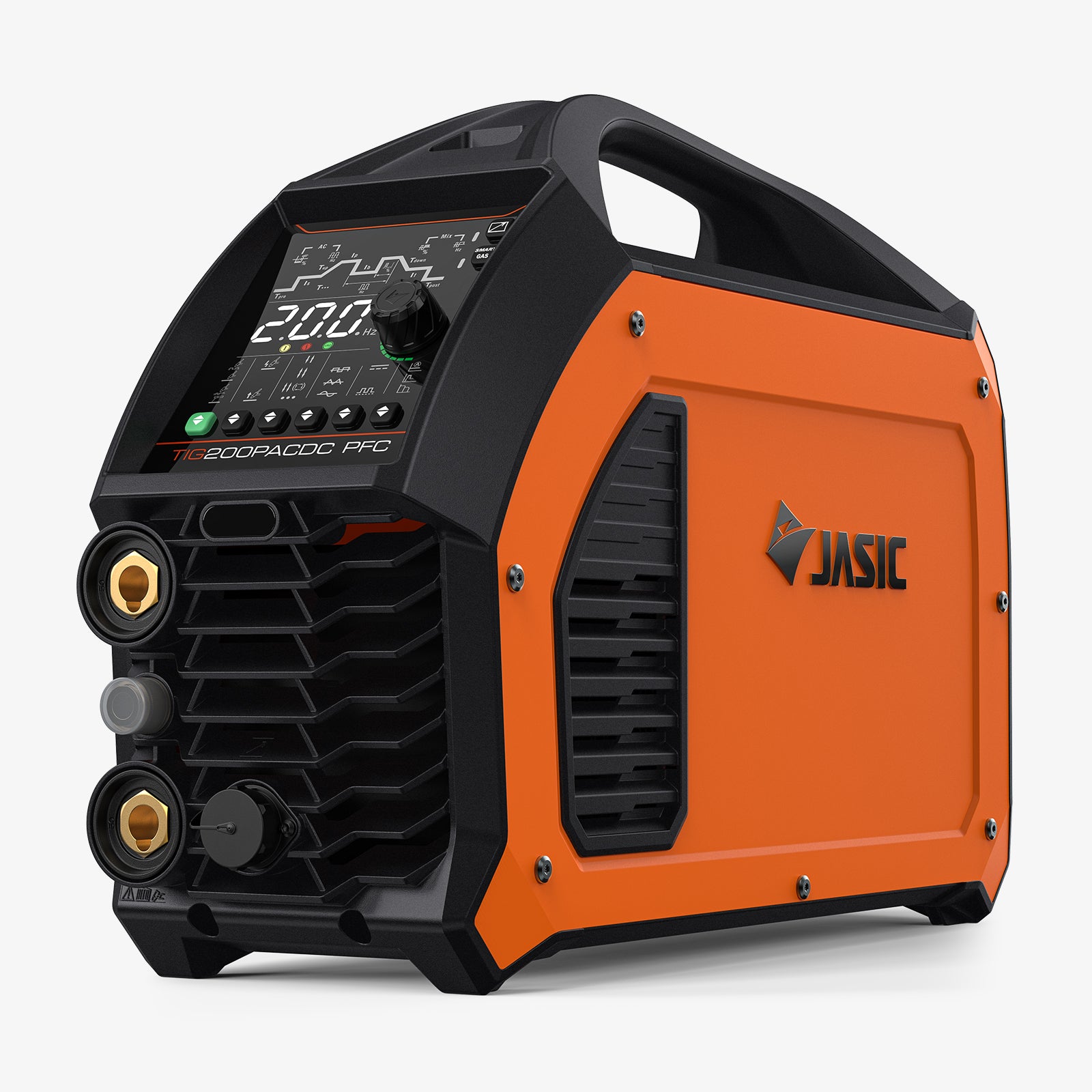

Orange and black inverter TIG welder with digital control panel and connection ports
Front view of digital TIG200 PACDC PFC TIG welder with control panel and connectors.
Orange and black TIG welder with digital control panel for industrial welding
Orange portable TIG welder with gas inlet and black handle, suitable for industrial welding

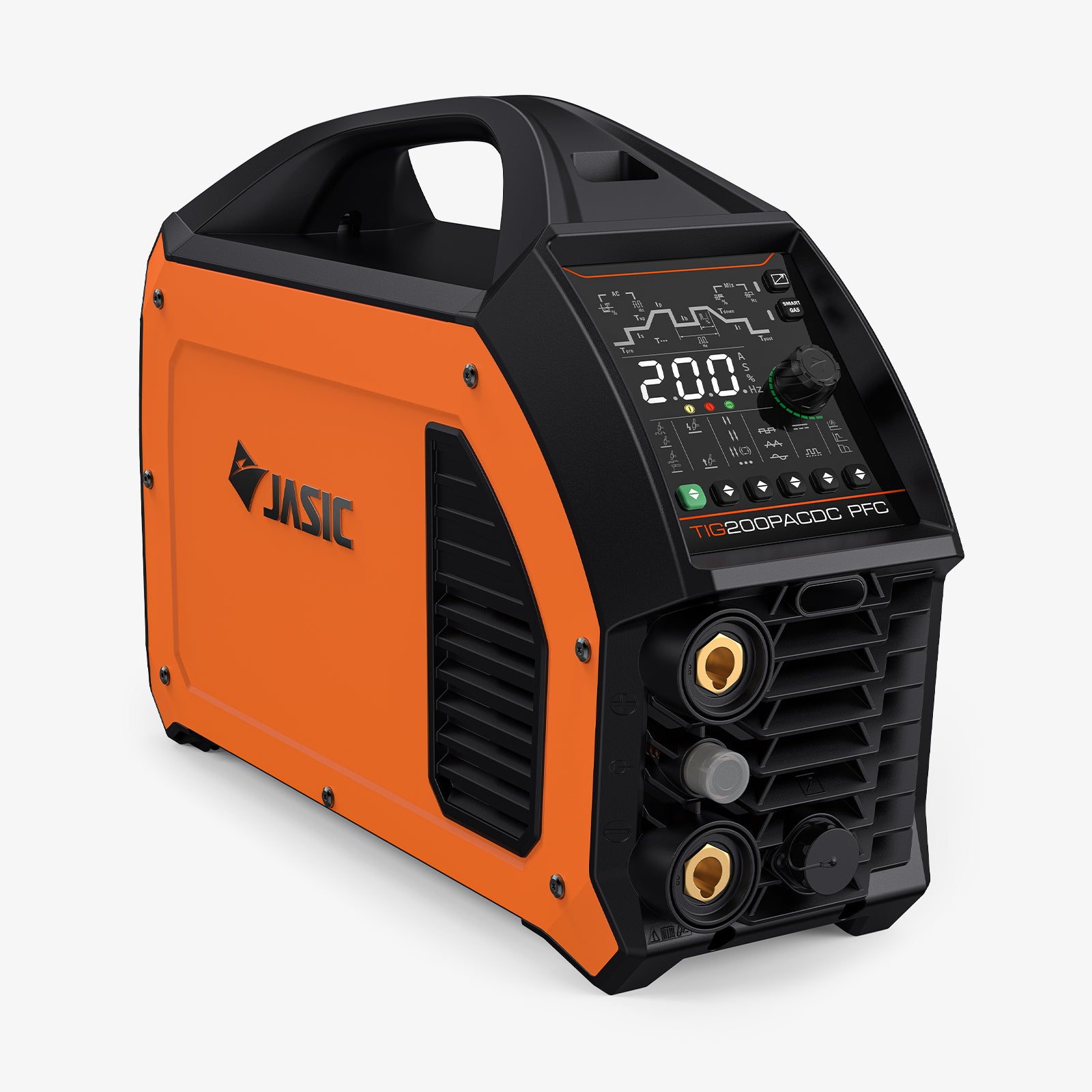

Orange TIG200PACDC PFC TIG welder with digital control panel and front connectors

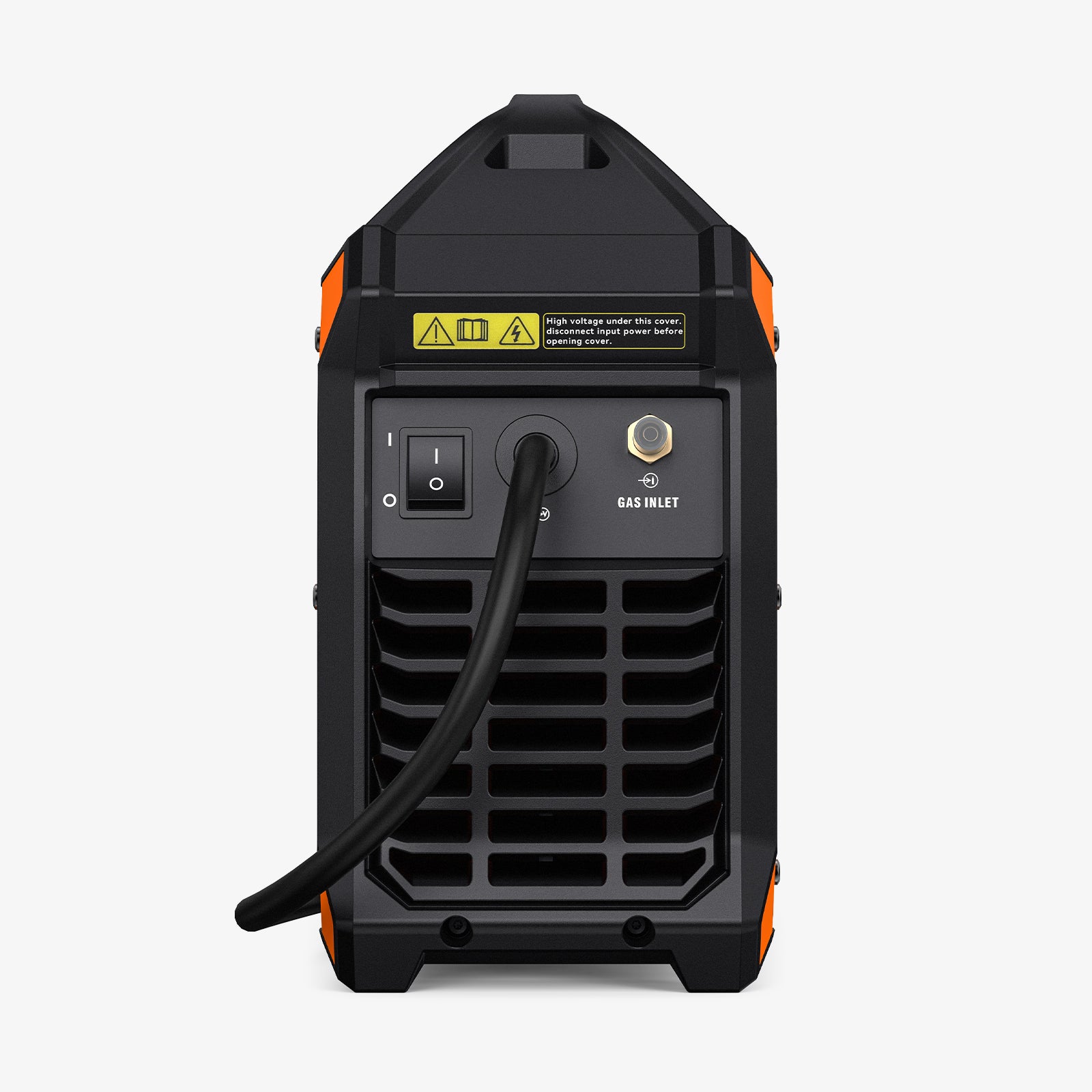

Rear view of TIG welder machine showing power switch, gas inlet, and ventilation panel.

JASIC EVO20® TIG200 PACDC PFC Pulse Aluminum TIG Welder

$1,488.00
  • Weld aluminum, magnesium, and stainless steel more easily with AC/DC TIG and pulse control in one machine
  • Get better control over cleaning action and penetration with Mixed AC/DC technology on different material thicknesses
  • Tune your AC arc to match the job with three waveform options for better weld feel and finish
  • Keep arc performance stable across 95V-265V input with PFC, even on long extension leads or generator power
Welder Kit
Welder Kit: TIG200 PACDC PFC Welder Kit
Key Features

Mixed AC/DC Welding: Combine AC and DC output to improve penetration and efficiency while maintaining high-quality surface cleaning on aluminum

AC/DC Pulse TIG: Switch between AC Pulse TIG for aluminum and DC Pulse TIG for stainless steel to handle diverse workshop and repair tasks with one machine

Multiple Waveforms: Select Square, Triangle, or Sine waves to balance cleaning action and heat input, preventing burn-through on thin aluminum sheets

PFC: Operate on 95V–265V input to maintain a stable arc on fluctuating generator power or long extension leads without tripping breakers

Dash-Arc Ignition: Achieves 99.99% arc strike success and 400% faster response time to ensure instantaneous ignition without delays

Patented ABAP Technology: Isolates sensitive internal electronics from jobsite dust and metal filings through independent airflow channels to extend service life

Welding Engineer Mode: Provides access to advanced parameter tuning and factory reset options for professional-level control and consistent setup

Remote Ready: Supports wired or wireless foot pedals and torch controls to adjust amperage in real-time during complex welds

In The Box
  • 1 x TIG200 PACDC PFC TIG Welder
  • 1 x Electrode Holder with Cable, 300A, 13 ft (4 m), 25 mm², 35-50 Dinse Connector
  • 1 x Work Clamp with Cable, 300A, 13 ft (4 m), 25 mm², 35-50 Dinse Connector
  • 1 x Power Adapter, 3.3 ft (1 m), 15A, 300V, NEMA 5-15P to 6-50R
  • 1 x WP 26 TIG Torch, Air-Cooled, 200A, 13 ft (4 m)
  • 1 x Argon Flowmeter Regulator
  • 1 x Tungsten Electrode, 3/32 in x 5.9 in (2.4 x 150 mm)
  • 1 x PTFE Seal Tape, 5 g Roll
  • 1 x Gas Hose Kit, 10 ft (3 m), Gas Fitting and Hose Clamp
  • 1 x Safety Manual
  • 1 x User Manual

Supported payment methods

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa

Free Shipping on Orders Over $100

3-Year Warranty on All Equipment

30-Day Money-Back Guarantee

Full Customer & Technical Support

Need help?

CLEARVISION HD DISPLAY

Reduced glare and clearer visibility help you make faster, more precise adjustments.
Front View
Side View
Front View
Side View
Keep parameters easy to read in bright or dim environments.
A structured interface with simple icons makes adjusting your settings fast, intuitive, and effortless.

 AC/DC Pulse TIG Welding

Weld aluminum on AC and steel on DC with added pulse control. AC/DC Pulse helps reduce heat input, improve puddle control, and deliver cleaner welds across a wider range of materials.
AC Pulse
DC Pulse
AC Pulse
DC Pulse

Multiple AC Waveforms

Fine-tune your aluminum welds with complete AC waveform control. Switch between Sine, Square, and Triangle waveforms to adjust arc characteristics, bead profile, and penetration for the job at hand.
Sin
Square
Triangle
Sin
Square
Triangle
The smooth transition between positive and negative delivers a more consistent weld and better wetting at the toes.
The fast transition between positive and negative creates a more stable arc, deeper penetration, faster travel speeds, and a quicker-freezing puddle.
With fast polarity transitions and lower heat input, it is well suited for maintaining weld quality on thin or delicate material.

Mixed AC/DC

Combine AC cleaning action with DC penetration in one weld. Mixed AC/DC helps increase travel speed, improve fusion on thicker sections, and give you a more responsive puddle, especially on colder workpieces.
AC Pulse
DC Pulse
AC Pulse
DC Pulse

Full Pulse TIG Control

Reduce heat input without sacrificing penetration. By switching between peak current and base current, Pulse TIG helps focus the arc, improve puddle control, and make thin material and out-of-position welding easier to manage.
Pulse TIG Adjustment Range
Pulse TIG Adjustment Range

Advanced MMA Features

Advanced MMA features help improve arc control and make Stick welding easier.

Arc Ignition Control

Dash-Arc
Smart Lift TIG
Dash-Arc
Smart Lift TIG
Start the arc faster and more reliably. Real-time arc monitoring helps raise arc ignition success to 99.99% and improves arc response speed by 400%, making starts smoother and more consistent.
Improve arc starts and reduce tungsten-related issues with real-time arc monitoring. Faster response helps increase ignition success, maintain welding continuity after accidental contact, and reduce the risk of sticking, contamination, and tungsten damage.

Power Factor Correction (PFC)

Get more from your machine with higher electrical efficiency and more stable performance across a 95-265V wide input range. PFC helps compensate for voltage fluctuation, supports stronger output on unstable power, and helps reduce stress on internal components for longer service life.
Wide Voltage
Wide Application
Wide Voltage
Wide Application

Advanced IGBT Inverter Technology

Get smoother arcs, higher efficiency, and consistent power in every bead. Our IGBT Inverter runs cooler and adapts faster to your movements, giving you the professional-grade reliability needed for modern welding.

ABAP Tech

The active airflow design directs air through the machine while separating dust from key electronic components. This helps improve cooling efficiency, protect internal parts, and extend machine service life.

Smart Fan

By running only when necessary, this active cooling system slashes ambient noise, reduces power consumption, and minimizes dust intake—keeping your vital internal components pristine for a longer service.

Built Tough

Built to handle daily shop work, transport, and jobsite movement. The durable housing and baked-on finish help protect the machine from wear, impact, and scratches over time
Durable Baked-On Finish
Impact-Resistant Housing
Durable Baked-On Finish
Impact-Resistant Housing

Extra Features

Remote Control

Adjust your amperage directly at the weld joint via wired or wireless remote, eliminating constant trips back to the machine and maximizing your arc-on time

Auto-Save Parameter Memory

Automatically stores your last used settings so you can resume work instantly after powering down

Specifications

Input Voltage

AC95-265V, Single-Phase

Ieff (A)

TIG: 15A @ 115V / 10.3A @ 230V

MMA: 17.8A @ 115V / 12.4A @ 230V

Imax (A)

TIG: 30.0A @ 115V / 20.5A @ 230V

MMA: 32.5A @ 115V / 22.7A @ 230V

Open Circuit Voltage (OCV)

65V

Open Circuit Voltage with VRD Active (V)

12.3V

Efficiency

80%

Power Factor

0.95

Protection Class

IP21S

Insulation Class

B

Rated Input Power (kVA)

TIG: 3.5 kVA @ 115V / 4.7 kVA @ 230V

MMA: 3.9 kVA @ 115V / 5.6 kVA @ 230V

Dinse Connector

35/50

Standard

AS 60974-1

Warranty

3 Years

Weight

26.0 lbs

Dimensions (LxWxH)

19.3" x 6.5" x 13.4"

Suitable Materials

TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys
MMA: Mild Steel, Stainless Steel, Cast Iron

Welding Capacity

Aluminum: Up to 0.31 in (AC TIG / AC Pulse)
Stainless Steel: Up to 0.24 in (DC TIG / DC Pulse)
Carbon Steel: Up to 0.39 in (DC TIG or MMA)

TIG Ignition Type

Lift TIG

TIG Current Range

5-160A @ 115V / 5-200A @ 230V

TIG Voltage Range

10.2-16.4V @ 115V / 10.2-18V @ 230V

TIG Duty Cycle @ 25%

160A / 16.4V @ 115V

200A / 18V @ 230V

TIG Duty Cycle @ 60%

100A / 14V @ 115V

129A / 15.2V @ 230V

TIG Duty Cycle @ 100%

80A / 13.2V @ 115V

100A / 14V @ 230V

TIG AC Pulse Current Range

5-160A @ 115V / 5-200A @ 230V

TIG AC Pulse Frequency

20-250Hz

MMA Current Range

10-120A @ 115V / 10-160A @ 230V

MMA Voltage Range

20.4-24.8V @ 115V / 20.4-26.4V @ 230V

MMA Duty Cycle @ 30%

120A / 24.8V @ 115V

160A / 26.4V @ 230V

MMA Duty Cycle @ 60%

85A / 23.4V @ 115V

114A / 24.6V @ 230V

MMA Duty Cycle @ 100%

65A / 22.6V @ 115V

88A / 23.5V @ 230V

Hot Start Current Range

0-80A

Arc Force Range

0-40A

MMA Electrode Range

Up to 1/8 in

FAQs

What welding processes does TIG200 PACDC PFC support?

TIG200 PACDC PFC supports AC TIG, AC Pulse TIG, DC TIG, DC Pulse TIG, MMA/Stick welding, 2T/4T trigger modes, and Spot welding modes. This gives you one machine for aluminum work, stainless steel fabrication, carbon steel welding, repair jobs, and general shop use.

Can TIG200 PACDC PFC weld aluminum?

Yes. TIG200 PACDC PFC is built for aluminum welding with AC TIG and AC Pulse TIG. It is a practical choice for aluminum fabrication, repair work, and jobs that need better puddle control and cleaner weld appearance.

What is the benefit of pulse TIG on this machine?

Pulse TIG helps reduce heat input and gives you better control over the weld puddle. This helps reduce distortion, improve bead appearance, and make thin material welding easier to control.

What welding thickness can TIG200 PACDC PFC handle?

TIG200 PACDC PFC is positioned for:

  • Aluminum: up to 0.31 in (AC TIG / AC Pulse)
  • Stainless Steel: up to 0.24 in (DC TIG / DC Pulse)
  • Carbon Steel: up to 0.39 in (DC TIG or MMA)
    Actual results depend on material type, joint design, and welding setup.
Does PFC help with unstable power or long extension cords?

Yes. PFC helps TIG200 PACDC PFC maintain a more stable arc across a wide input range, making it easier to weld with more confidence.

What is the benefit of 2T and 4T trigger modes?

2T and 4T modes give you more control over torch operation. This helps improve comfort during longer welds and makes the machine easier to adapt to different welding habits and working positions.

Does TIG200 PACDC PFC have VRD?

Yes. TIG200 PACDC PFC includes VRD, which helps improve operator safety when the machine is idle by lowering open-circuit voltage in MMA mode.

Why choose TIG200 PACDC PFC over a basic TIG welder?

TIG200 PACDC PFC gives you more than basic TIG welding. It combines AC/DC TIG, pulse modes, MMA capability, 2T/4T, spot welding, dual voltage input, PFC power control, remote control compatibility, VRD, intelligent fan control, and a large HD display in one compact machine. That makes it a stronger choice for users who want better control, broader material coverage, and more flexibility across different jobs.

What warranty does TIG200 PACDC PFC come with?

TIG200 PACDC PFC comes with a 3-year warranty for added peace of mind. For full warranty terms, coverage details, and claim instructions, please visit our Warranty Policy page.

Do you offer technical support after purchase?

Yes. If you need help with setup, operation, or troubleshooting, our support team is here to help. You can find contact details and support information on our Contact Us page.
