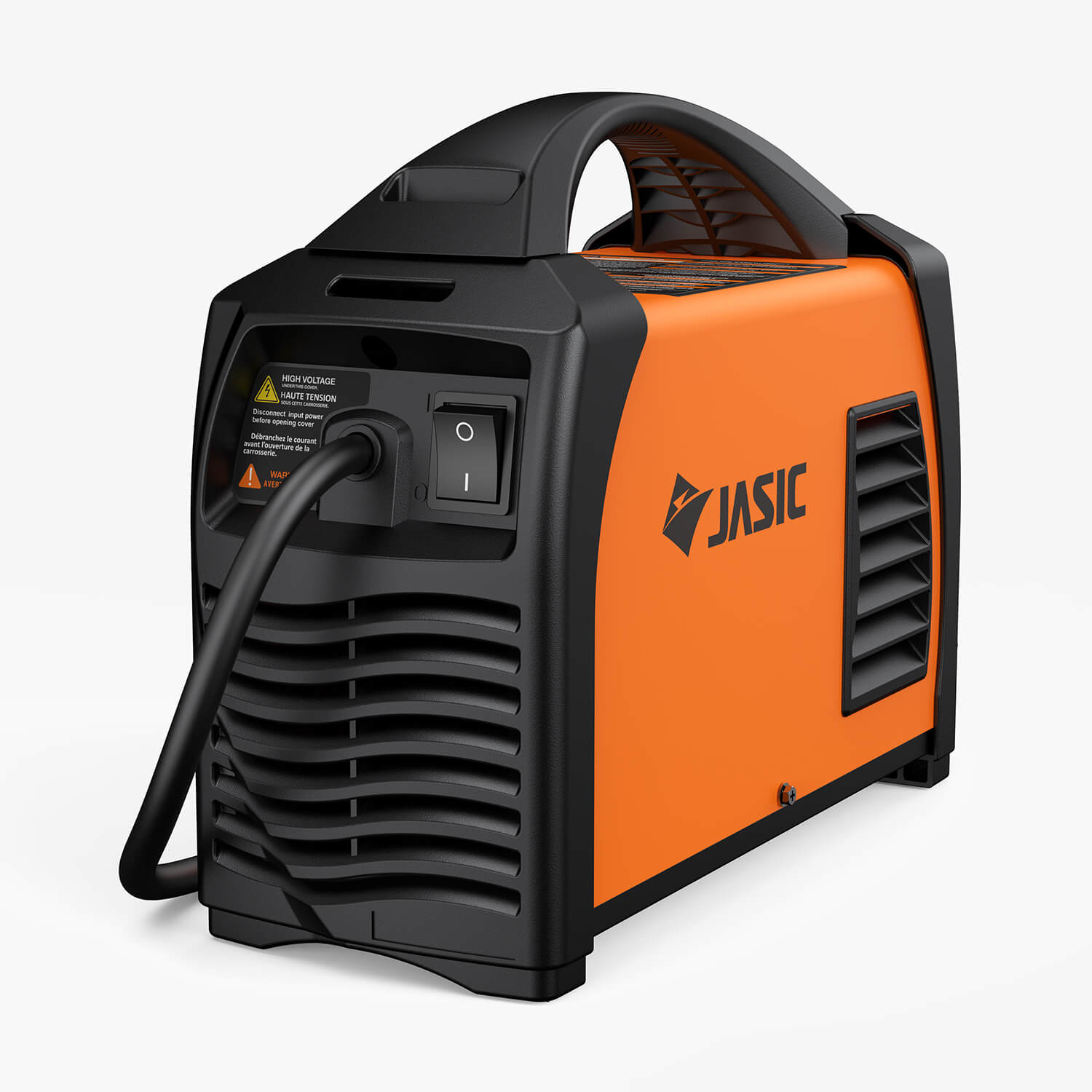

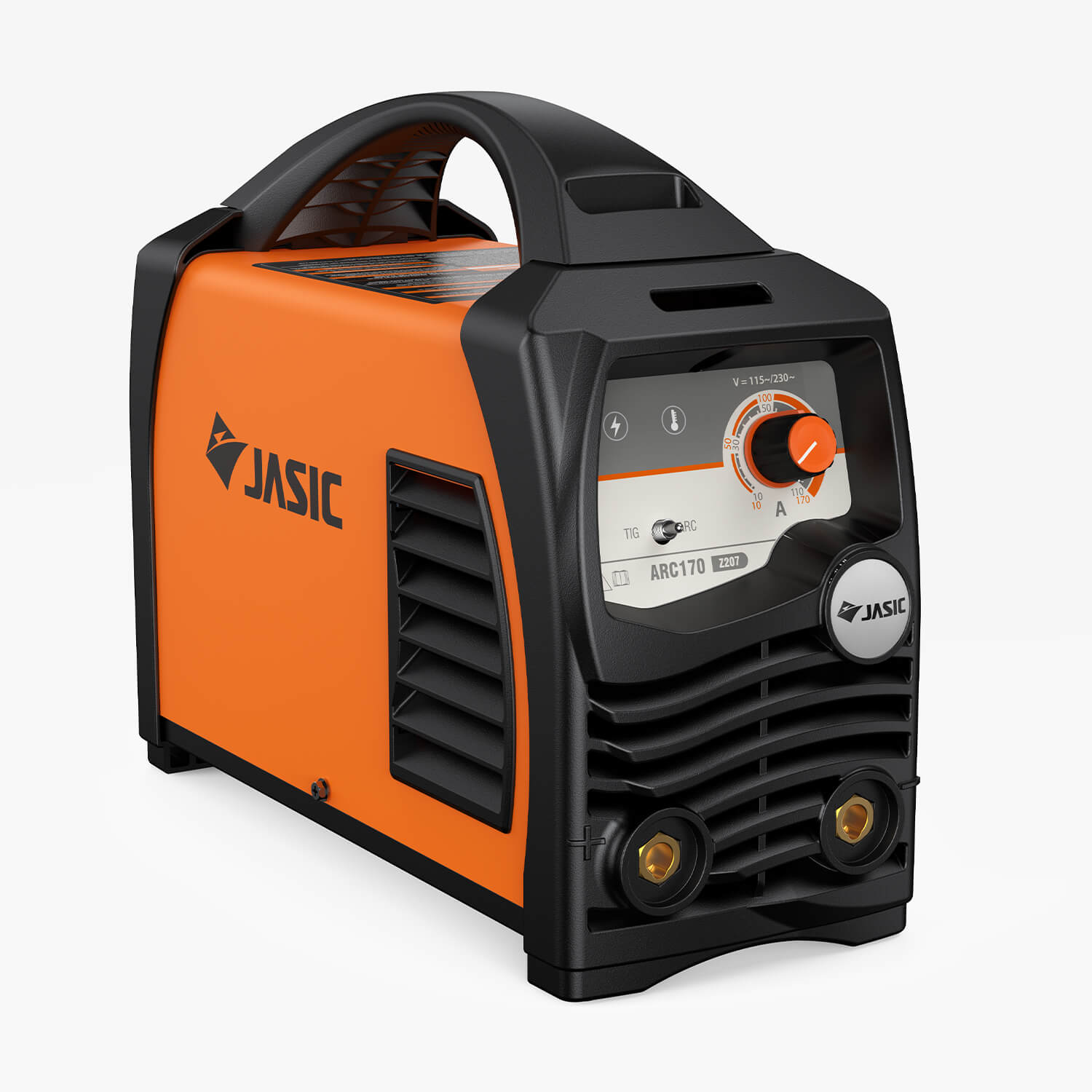

JASIC PRO ARC170 Portable Lift TIG/Stick Welder
Handle mobile repairs and workshop projects with a 10.4lb portable welder. JASIC EVO20® ARC170 switches between MMA and Lift TIG to weld carbon steel, stainless steel, and cast iron.
Dual-voltage 115V/230V sensing allows operation in home garages or on-site without manual adjustments. This rugged unit provides reliable arc stability for users needing professional results in a compact frame.
Key Features
MMA & Lift TIG: Switch between Stick welding and precise Lift TIG to handle various materials and thicknesses with a single tool
Dual Voltage: Connect to standard household outlets or industrial power sources via automatic voltage sensing for maximum job site flexibility
Hot Start & Anti-Stick: Ensure smooth arc ignition every time and prevent electrode freezing to simplify operation for beginners and increase speed for pros
Self-Adaptive Arc Force: Maintain a stable arc regardless of cable length or positioning to ensure consistent penetration and uniform bead quality
Ultra-Portable 4.7kg Build: Reduce fatigue during mobile repairs or overhead work with a lightweight chassis designed for easy transport
Rugged Protection: Rely on a reinforced casing built to withstand drops and harsh workshop conditions for long-term service life
In The Box
- 1 x ARC170 Stick Welder
- 1 x Work Clamp with Cable, 300A, 10 ft (3 m), 16 mm² Pure Copper, 35-50 Dinse Connector
- 1 x Electrode Holder with Cable, 300A, 10 ft (3 m), 16 mm² Pure Copper, 35-50 Dinse Connector
- 1 x Power Adapter, 3.3 ft (1 m), 110V to 220V, NEMA 5-15P to 6-50R
- 1 x User Manual
Free Shipping on Orders Over $100
3-Year Warranty on All Equipment
30-Day Money-Back Guarantee
Full Customer & Technical Support
JASIC PRO ARC170 Portable Lift TIG/Stick Welder
Specifications
Input Voltage
AC230V/115V±15%, Single-Phase
Ieff (A)
13.5A @ 115V-15A
14.6A @ 115V-20A
18.1A @ 230V
Imax (A)
21.4A @ 115V-15A
28.6A @ 115V-20A
30.5A @ 230V
Open Circuit Voltage (OCV)
63V
Open Circuit Voltage with VRD Active (V)
9V
Power Factor
0.7
Protection Class
IP21S
Insulation Class
B
Dinse Connector
35/50
Standard
AS 60974-1
Warranty
3 Years
Weight
10.4 lbs
Dimensions (LxWxH)
12.3" x 5.1" x 9.8"
Suitable Materials
Mild Steel, Stainless Steel, and more
MMA Current Range
10-80A @ 115V-15A
10-110A @ 115V-20A
10-170A @ 230V
MMA Voltage Range
20.4-23.2V @ 115V-15A
20.4-24.4V @ 115V-20A
20.4-26.8V @ 230V
MMA Duty Cycle @ 25%
110A / 24.4V @ 115V-20A
MMA Duty Cycle @ 40%
80A / 23.2V @ 115V-15A
170A / 26.8V @ 230V
MMA Duty Cycle @ 60%
66A / 22.6V @ 115V-15A
71A / 22.8V @ 115V-20A
129A / 25.2V @ 230V
MMA Duty Cycle @ 100%
51A / 22.0V @ 115V-15A
55A / 22.2V @ 115V-20A
100A / 24.3V @ 230V
TIG Ignition Type
Lift TIG
TIG Current Range
10-110A @ 115V
10-170A @ 230V
TIG Voltage Range
10.0-14.4V @ 115V
10.0-16.8V @ 230V
TIG Duty Cycle @ 30%
110A / 14.4V @ 115V
TIG Duty Cycle @ 40%
170A / 16.8V @ 230V
TIG Duty Cycle @ 60%
77A / 13.1V @ 115V
138A / 15.5V @ 230V
TIG Duty Cycle @ 100%
60A / 12.4V @ 115V
107A / 14.3V @ 230V
FAQs
What welding processes does ARC170 support?
ARC170 supports MMA/Stick welding and Lift TIG. This gives you more flexibility for repair work, installation jobs, farm maintenance, and general field welding with one compact machine.
Can ARC170 run on both 115V and 230V power?
Yes. ARC170 supports 115V/230V dual voltage, so you can use it in different power environments more easily. This makes it a practical choice for home garages, small workshops, job sites, and mobile repair work.
Is ARC170 easy to use for beginners?
Yes. ARC170 is built for easy setup and easy control, making it a good fit for beginners, maintenance users, and DIY welders who want a simple machine for daily work.
What does Hot Start do?
Hot Start helps the arc strike more easily at the beginning of the weld. This makes arc starts smoother and helps reduce sticking when you first touch down with the electrode.
What does Anti-Stick do?
Anti-Stick helps prevent the electrode from overheating and sticking hard to the workpiece. If the rod sticks, it is easier to release, which helps reduce frustration, wasted rods, and interruptions during welding.
What is Self-Adaptive Arc Force, and why does it matter?
Self-Adaptive Arc Force automatically adjusts arc response based on welding condition. This helps keep the arc more stable, supports better penetration, and improves control when arc length changes during welding.
What warranty does ARC170 come with?
ARC170 comes with a 3-year warranty for added peace of mind. For full warranty terms, coverage details, and claim instructions, please visit our Warranty Policy page.
Can I return ARC170 if it is not the right fit for my needs?
Yes. We offer a 30-day hassle-free return policy for added peace of mind. For full return eligibility, conditions, and refund details, please visit our Return & Refund Policy page.
Do you offer technical support after purchase?
Yes. If you need help with setup, operation, or troubleshooting, our support team is here to help. You can find contact details and support information on our Contact Us page.
