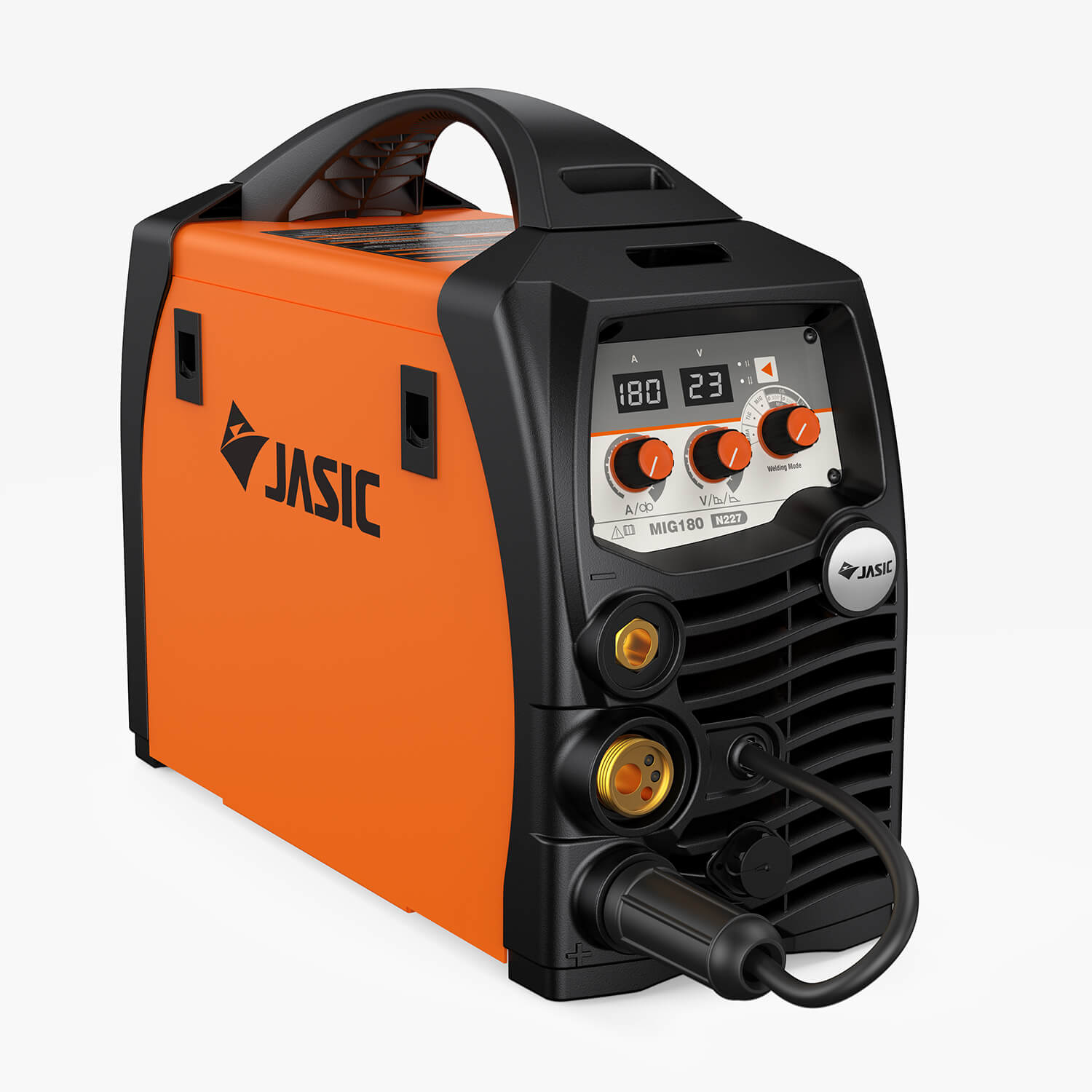

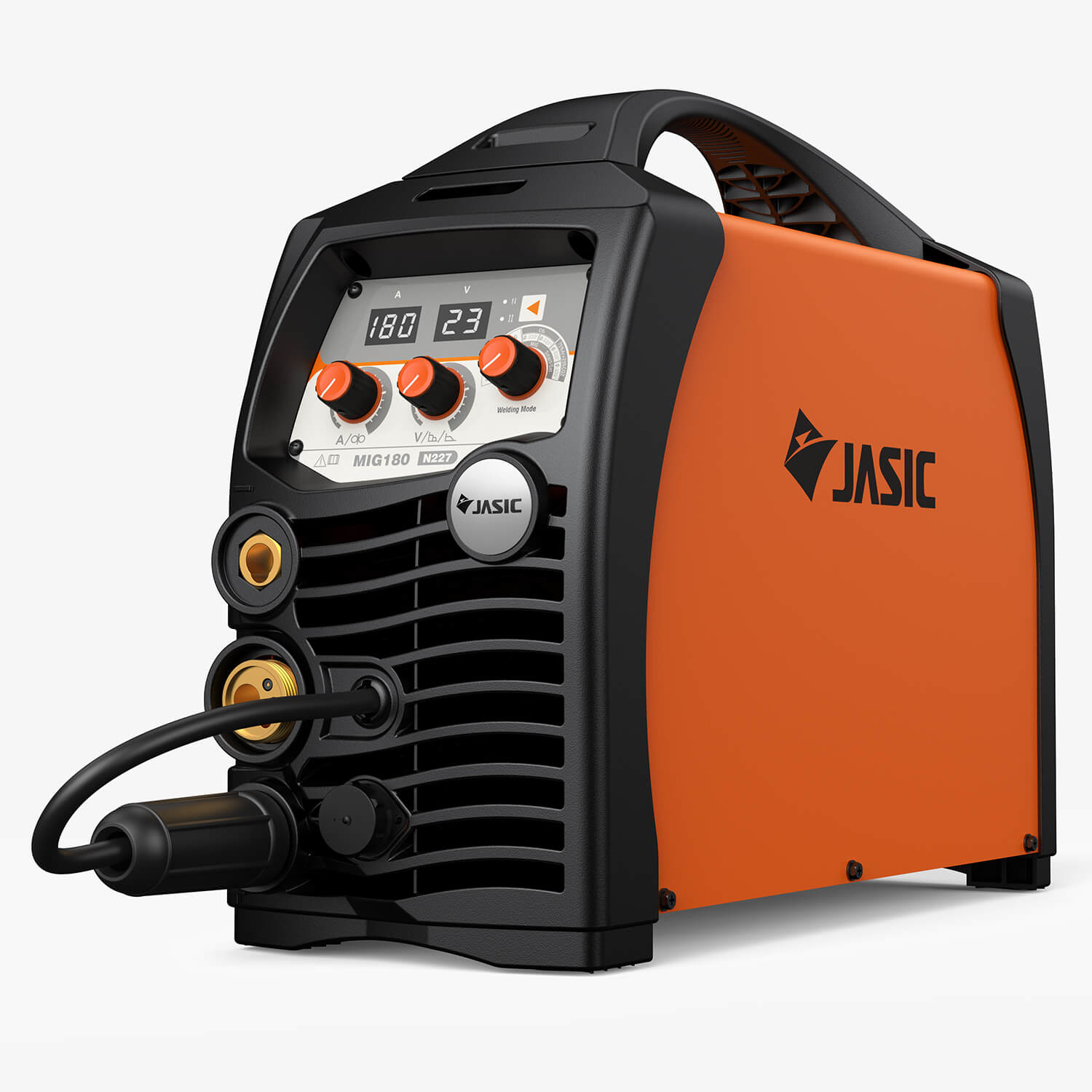

JASIC PRO MIG180 Dual Voltage Synergic 5 In 1 MIG Welder
- Handle automotive repairs, farm maintenance, and home DIY projects with one versatile machine instead of carrying multiple units.
- Switch between gas MIG, flux-cored, Stick, and Lift TIG to cover a wider range of welding jobs more easily.
- Weld steel plate up to 8 mm with enough output for everyday repair and fabrication work.
- Plug into 115V household power or 230V shop power for more flexibility across different work environments.
- Let the machine match welding parameters automatically through the synergic system to reduce setup guesswork.
Key Features
5-in-1 Versatility: Handle mild steel, stainless, and aluminum repairs with one compact unit that switches processes in seconds
Dual-Voltage: Plug into standard 115V household outlets for light DIY or 230V shop power for heavy fabrication
Synergic Control: Select your wire diameter and MIG180 automatically matches voltage to wire speed for a stable arc
Spool Gun Compatible: Tackle aluminum projects with confidence. Add an optional spool gun for smooth, tangle-free feeding on aluminum.
Isolated Cooling: Keep grinding dust and metal shavings away from sensitive electronics with an independent air duct that maximizes machine life
Cleaner Welds: Get a stable, consistent arc that drastically reduces spatter. Less mess around the joint means you finish projects faster
In The Box
- 1 x MIG180 MIG Welder
- 1 x V-Knurled Drive Roll, 0.030-0.035 in (0.8-1.0 mm)
- 1 x Work Clamp with Cable, 300A, 13 ft (4 m), #4 AWG (25 mm²), 35-50 Dinse Connector
- 1 x Electrode Holder with Cable, 300A, 13 ft (4 m), #4 AWG (25 mm²), 35-50 Dinse Connector
- 1 x Gas Hose, 8 ft (2.5 m), Black
- 1 x MB 15 MIG Gun, 10 ft (3 m), 180A
- 6 x Contact Tips: 0.023 / 0.030 / 0.035 in (0.6 / 0.8 / 1.0 mm), 2 each
- 2 x Gas Nozzles
- 1 x Argon Flowmeter Regulator
- 1 x User Manual
Free Shipping on Orders Over $100
3-Year Warranty on All Equipment
30-Day Money-Back Guarantee
Full Customer & Technical Support
JASIC PRO MIG180 Dual Voltage Synergic 5 In 1 MIG Welder
Multi-Process Welding
Dual Voltage
Synergic Control
Advanced IGBT Inverter Technology
Smart Fan
Built Tough
Extra Features
Digital Control Technology
Our advanced digital technology ensures a clean finish every time, significantly reducing your post-weld cleanup and grinding time
Auto-Save Parameter Memory
This system automatically saves your welding parameters, allowing you to resume your work instantly with perfect consistency across every project
Compact & Portable
Weighing only 27.6lbs (12.5kg), this compact powerhouse supports standard wire spools while remaining easy to carry. Perfect for on-site repairs and DIY projects where mobility is key
Specifications
Input Voltage
AC230V/115V±15%, Single-Phase
Ieff (A)
15A
Imax (A)
30A
Open Circuit Voltage (OCV)
53V
Efficiency
85%
Power Factor
0.7
Protection Class
IP21S
Insulation Class
B
Dinse Connector
35/50
Standard
AS 60974-1
Warranty
3 Years
Weight
27.6 lbs
Dimensions (LxWxH)
19.1" x 7.3" x 14.6"
Suitable Materials
Mild Steel, Stainless Steel, Aluminum, and more
MIG Current Range
30-100A @ 115V / 30-180A @ 230V
MIG Voltage Range
15.5-19V @ 115V / 15.5-23V @ 230V
MIG Duty Cycle @ 25%
100A / 24V @ 115V
160A / 26.4V @ 230V
MIG Duty Cycle @ 60%
64.5A / 22.6V @ 115V
103A / 22.6V @ 230V
MIG Duty Cycle @ 100%
50A / 22V @ 115V
80A / 23.2V @ 230V
MIG Wire Sizes
0.6/0.8/0.9mm
MIG Wire Spool Sizes
5 kg (11 lb)
TIG Ignition Type
Lift TIG
TIG Current Range
10-100A @ 115V
10-160A @ 230V
TIG Voltage Range
20.4-24V @ 115V
20.4-26.4V @ 230V
TIG Duty Cycle @ 25%
100A / 24V @ 115V
160A / 26.4V @ 230V
TIG Duty Cycle @ 60%
64.5A / 22.6V @ 115V
103A / 24.1V @ 230V
TIG Duty Cycle @ 100%
50A / 22V @ 115V
80A / 23.2V @ 230V
MMA Current Range
10-100A @ 115V
10-180A @ 230V
MMA Voltage Range
10.4-14V @ 115V
10.4-17.2V @ 230V
MMA Duty Cycle @ 25%
100A / 14V @ 115V
180A / 17.2V @ 230V
MMA Duty Cycle @ 60%
64.5A / 12.6V @ 115V
116A / 14.6V @ 230V
MMA Duty Cycle @ 100%
50A / 12V @ 115V
90A / 13.6V @ 230V
FAQs
Can MIG180 run on household power?
Yes. MIG180 supports 115V and 230V dual voltage for both home and shop use.
Is MIG180 good for beginners?
Yes. Synergic setup helps reduce guesswork and makes setup easier for first-time welders
Can MIG180 weld aluminum?
MIG180 supports optional spool gun setup for aluminum welding, depending on configuration.
Why is MIG180 priced higher than some low-cost MIG welders online?
MIG180 offers dual voltage, multi-process capability, and a more complete accessory package instead of a basic single-process setup. Details like a 10 ft 180A MB15 MIG gun, multiple contact tip sizes, and higher-spec cable assemblies help explain the price difference.
Is this machine easy to move around?
Yes. MIG180 is built for garage, shop, and field use. It weighs 28.4 lbs, so it is easier to move and store than larger shop welders while still giving you dual-voltage flexibility and multiple welding processes.
What warranty does MIG180 come with?
MI180 is covered under our 3-Year warranty policy. For full warranty terms, coverage details, and claim instructions, please visit our Warranty Policy page.
Can I return MIG180 if it is not the right fit for my needs?
Yes. Return eligibility, conditions, and instructions are listed on our Return & Refund Policy page. Please review the policy before starting a return request.
Do you offer technical support after purchase?
Yes. If you need help with setup, operation, or troubleshooting, our support team is here to help. You can find contact details and support information on our Contact Us page.
