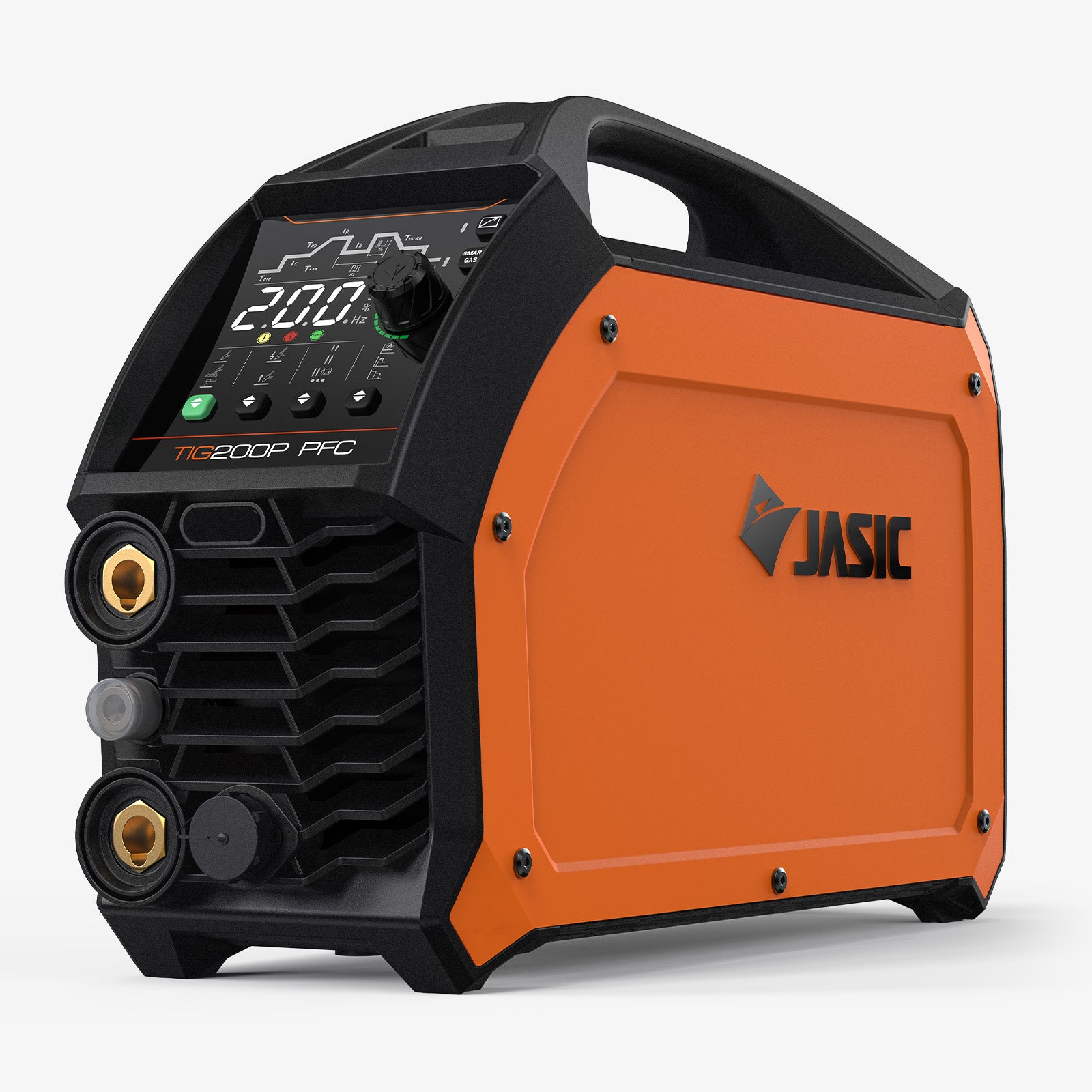

Orange inverter TIG welder with digital control panel and black vents on white background
Portable orange inverter welder with carrying handle and visible power switch

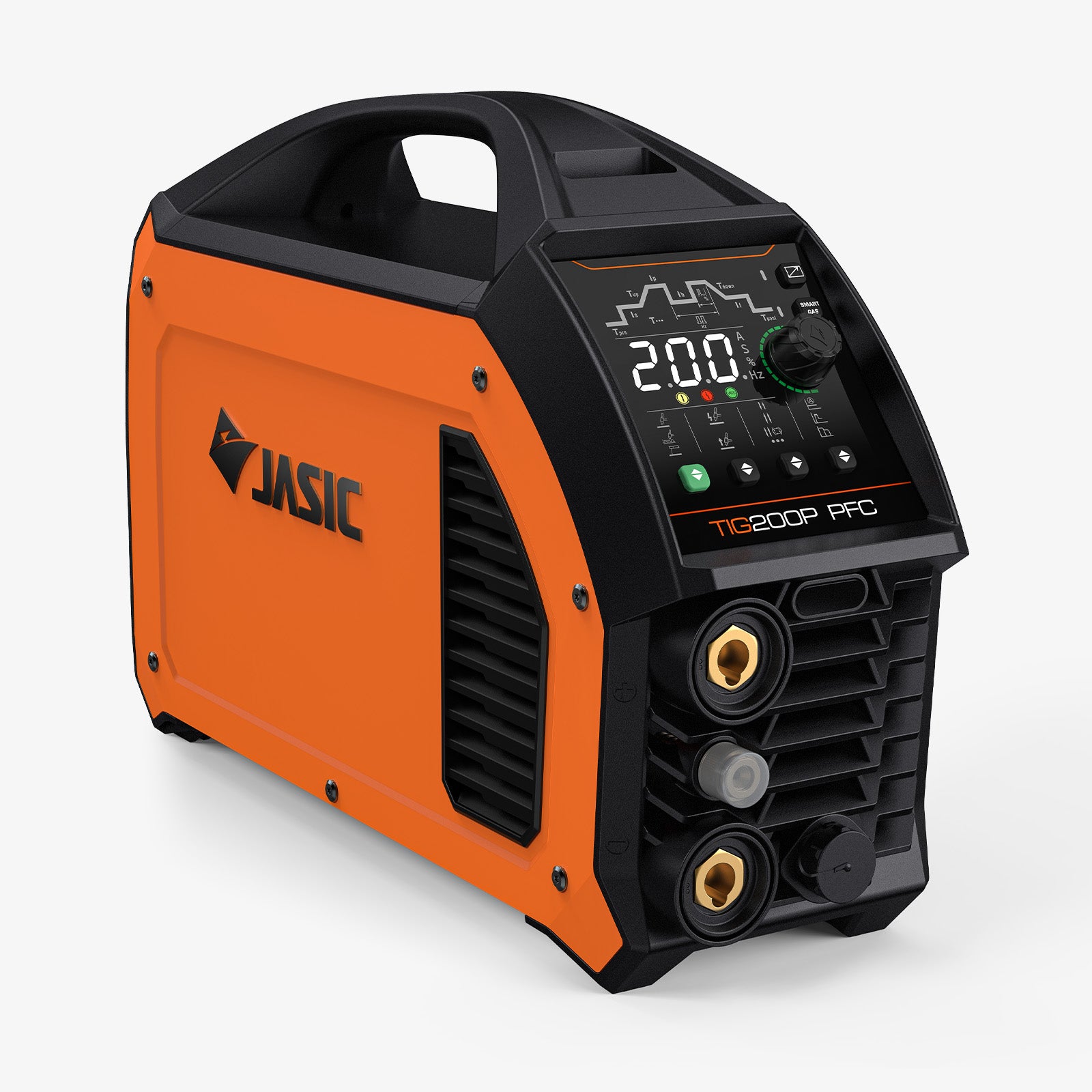

Orange TIG200P PFC digital TIG welder with LED display and control panel, angled view

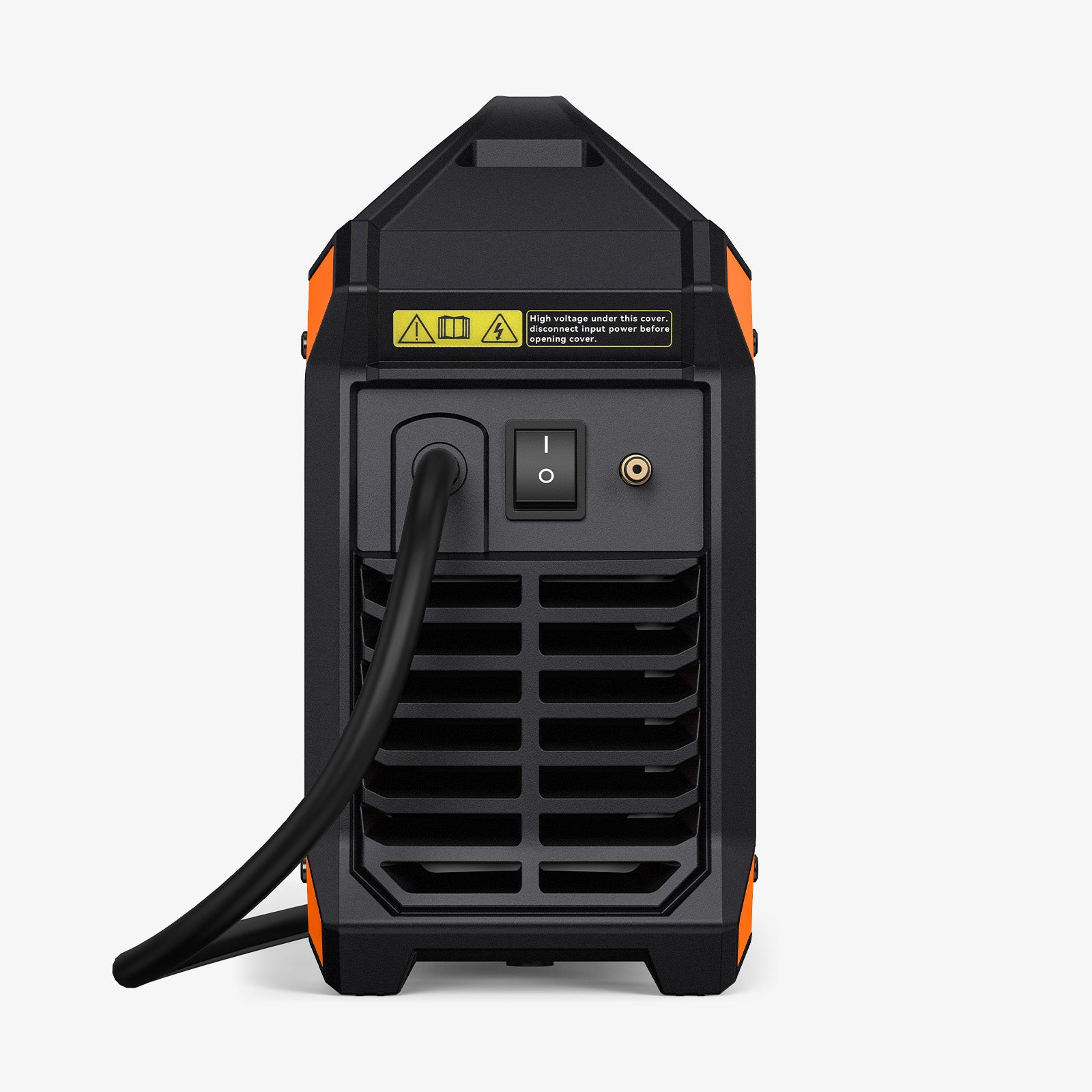

Rear view of a TIG welder machine with power switch, vent, and connected power cable
Save 8%

JASIC EVO20® TIG200P PFC Pulse TIG Welder With MMA

Sale price$919.99Regular price $1,000.00
Power factor correction(PFC)
Wide voltage adaptation
On-demand fan
Energy saving and environment friendly
  • All pulse parameters are user-adjustable
  • PFC (Power factor correction) improves overall energy efficiency and allows use with a generator.
  • Get a more dependable setup for stainless steel fabrication, repair, and precision welding jobs.
  • Backed by a 3-Year Warranty
Welder Kit
Welder Kit: TIG200P PFC Welder Kit
Key Features

PFC: Operates reliably on 95V–265V wide voltage input to maintain a stable arc on fluctuating grids or weak generators

Dash-Arc Ignition: Experience instantaneous, reliable arc strikes with a 99.99% success rate and 400% faster response time

Precision Pulse TIG: Minimize heat input to achieve perfect beads on 0.5mm thin-plate, preventing burn-through and distortion

ClearVision Display: High-definition interface remains readable under direct sunlight, providing accurate real-time parameter feedback

Patented ABAP Technology: Active Balancing Air Passage isolates sensitive electronics from jobsite dust and metal filings to extend machine life

Welding Engineer Mode: Access advanced parameter adjustments and factory reset options for professional-level customized control

Remote Ready Control: Adjust parameters instantly via wired or wireless remote without leaving your workpiece, increasing efficiency during complex or elevated welds

In The Box
  • 1 x TIG200P PFC TIG Welder
  • 1 x Electrode Holder with Cable, 300A, 13 ft (4 m), 25 mm², 35-50 Dinse Connector
  • 1 x Work Clamp with Cable, 300A, 13 ft (4 m), 25 mm², 35-50 Dinse Connector
  • 1 x Power Adapter, 3.3 ft (1 m), 15A, 300V, NEMA 5-15P to 6-50R
  • 1 x WP 26 TIG Torch, Air-Cooled, 200A, 13 ft (4 m)
  • 1 x Argon Flowmeter Regulator
  • 1 x Tungsten Electrode, 1/16 in x 5.9 in (1.6 x 150 mm)
  • 1 x PTFE Seal Tape, 5 g Roll
  • 1 x Gas Hose Kit, 10 ft (3 m), Gas Fitting and Hose Clamp
  • 1 x Safety Manual
  • 1 x User Manual

Supported payment methods

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa

Free Shipping on Orders Over $100

3-Year Warranty on All Equipment

30-Day Money-Back Guarantee

Full Customer & Technical Support

Need help?

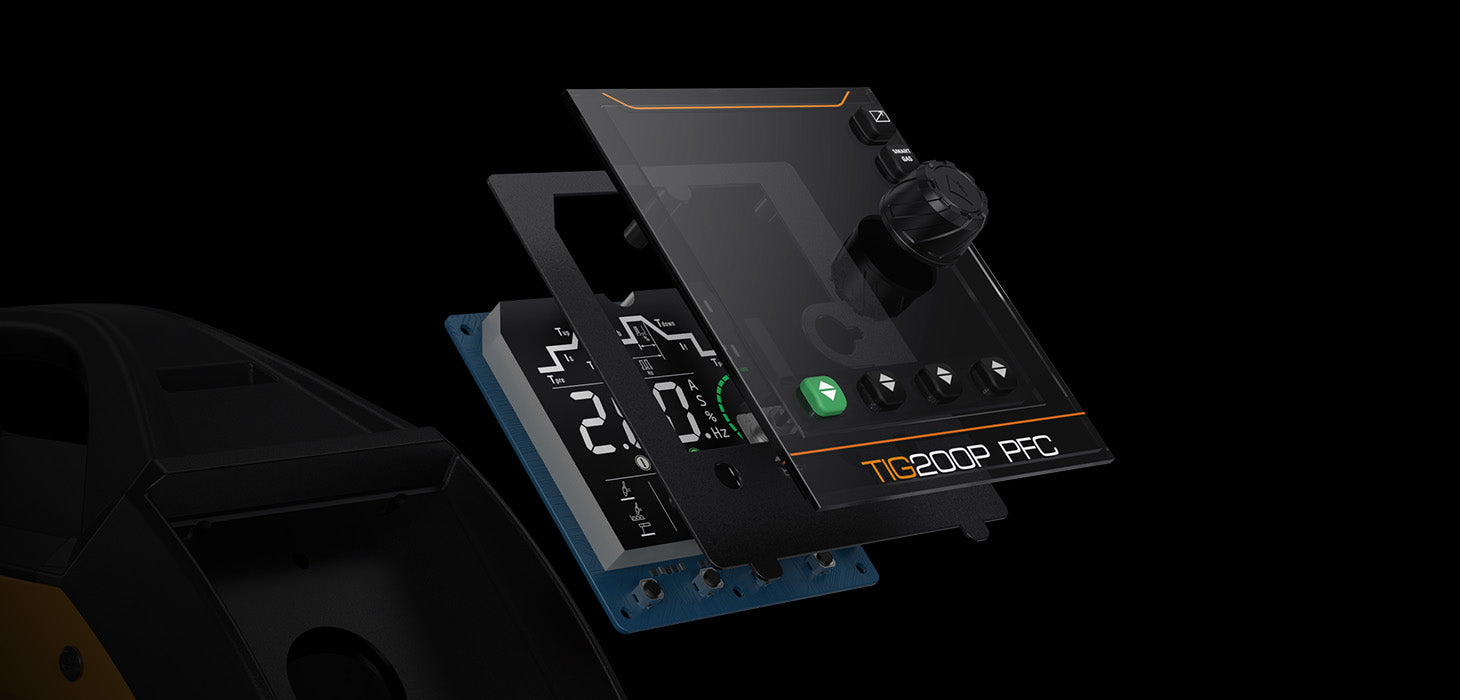

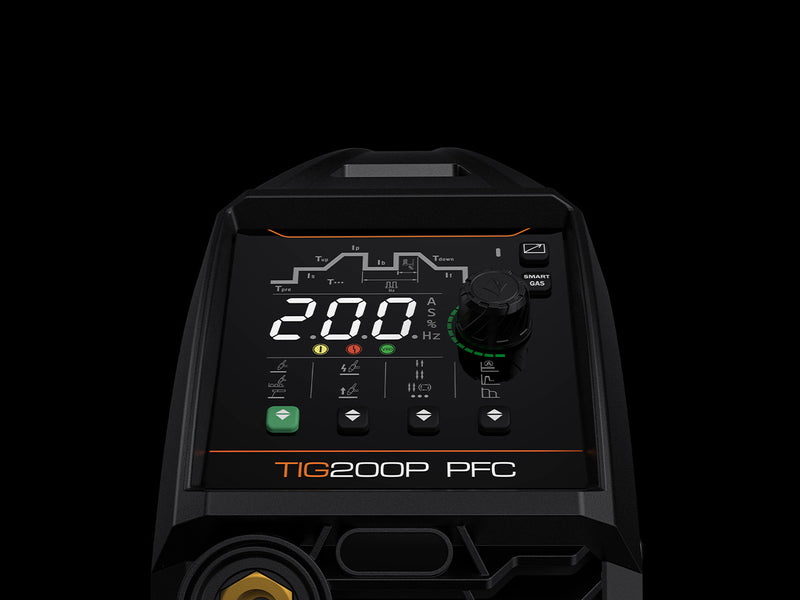

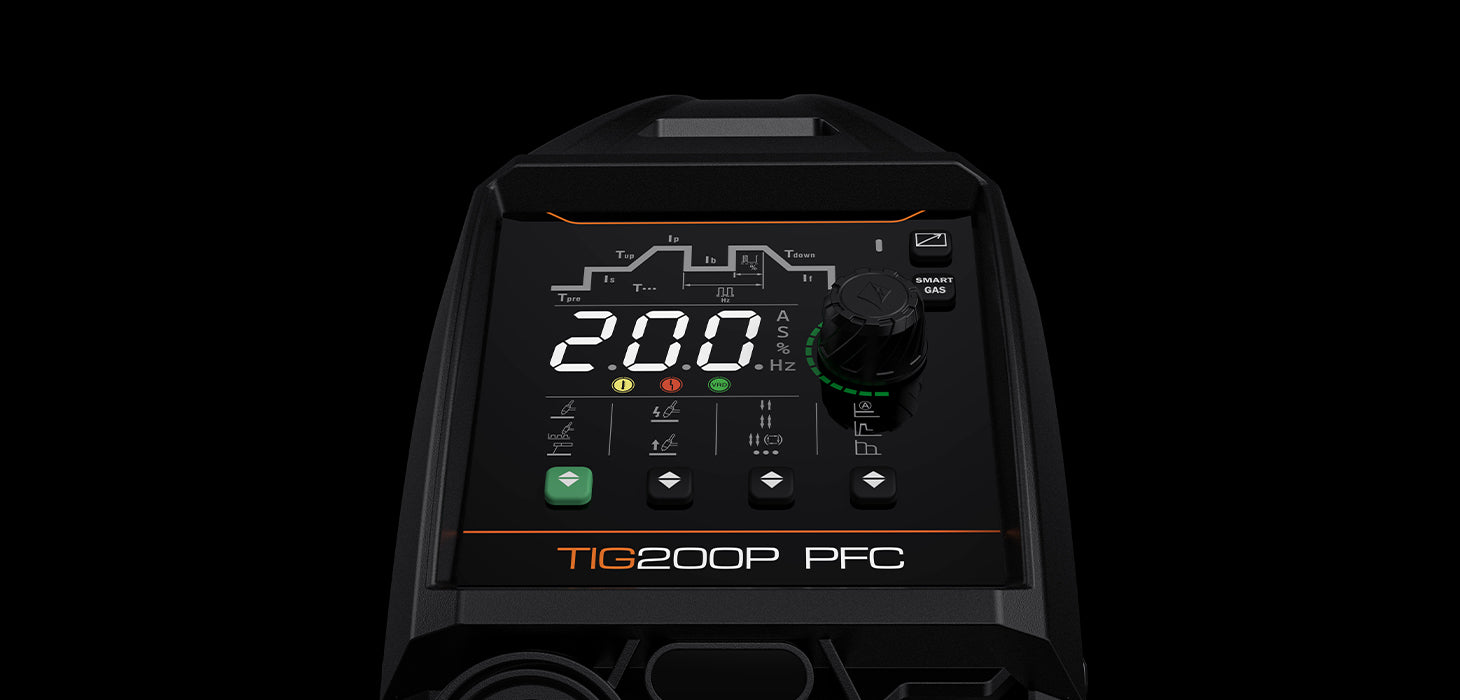

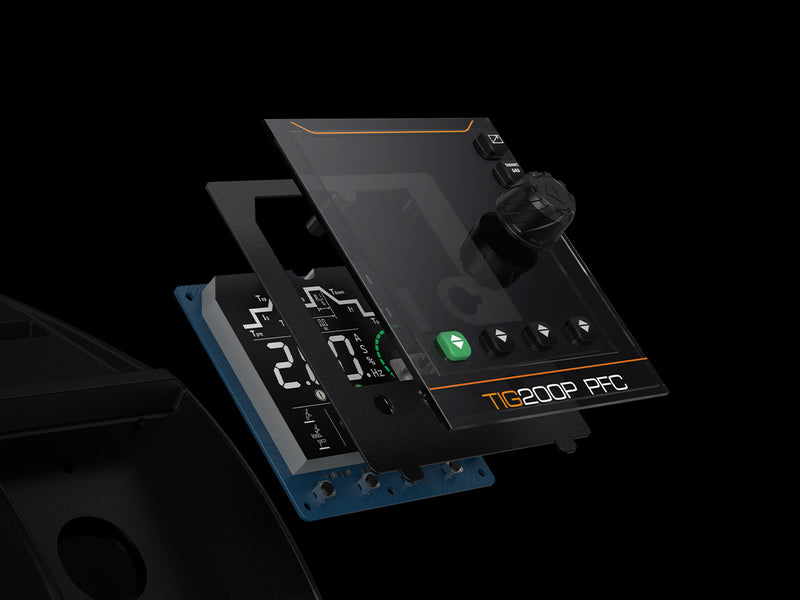

CLEARVISION HD DISPLAY

Reduced glare and clearer visibility help you make faster, more precise adjustments.
Front View
Side View
Front View
Side View
Keep parameters easy to read in bright or dim environments.
A structured interface with simple icons makes adjusting your settings fast, intuitive, and effortless.

Full Pulse TIG Control

Reduce heat input without sacrificing penetration. By alternating between peak and background current, Pulse TIG helps focus the arc and makes thin material and out-of-position welding easier to control.

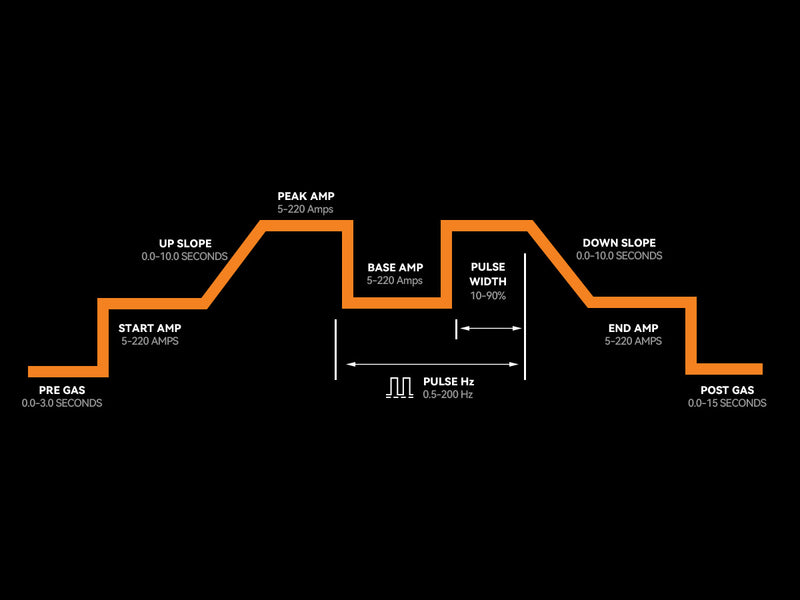

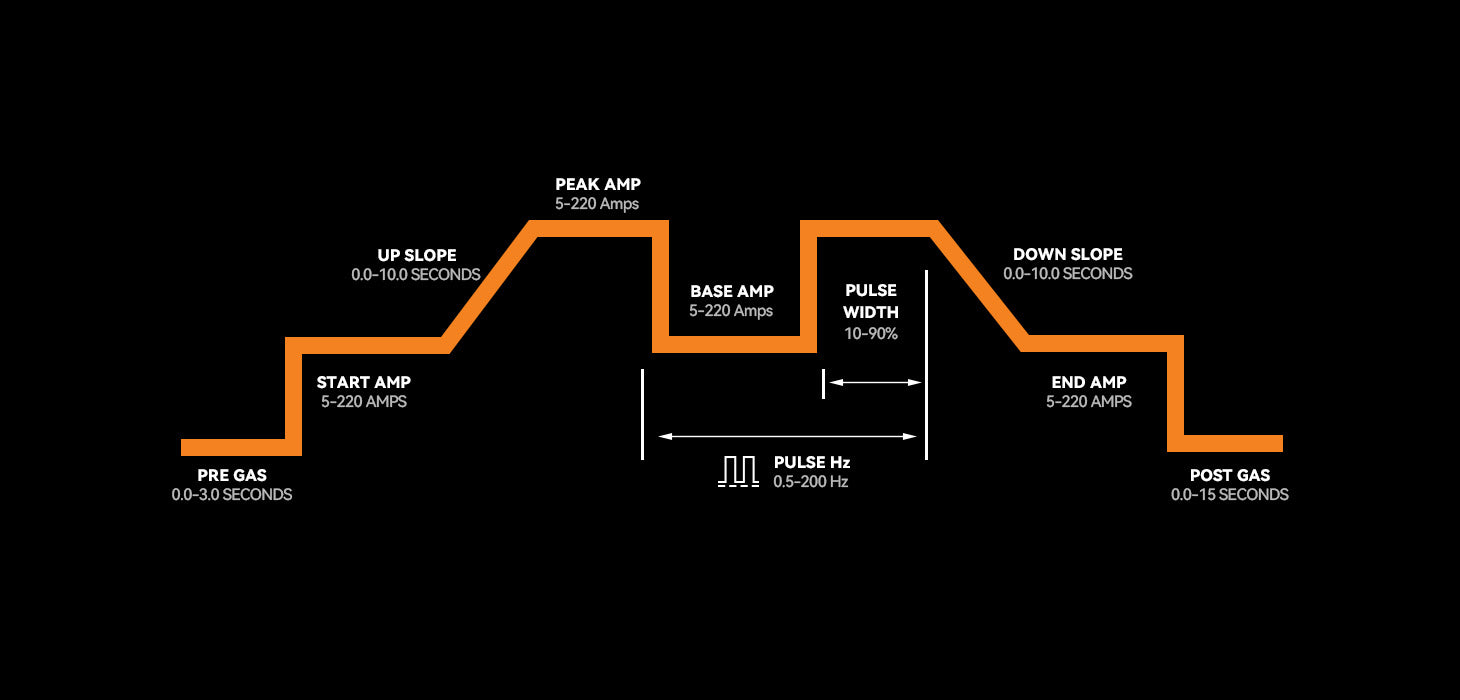

Pulse TIG Adjustment Range
Pulse TIG Adjustment Range

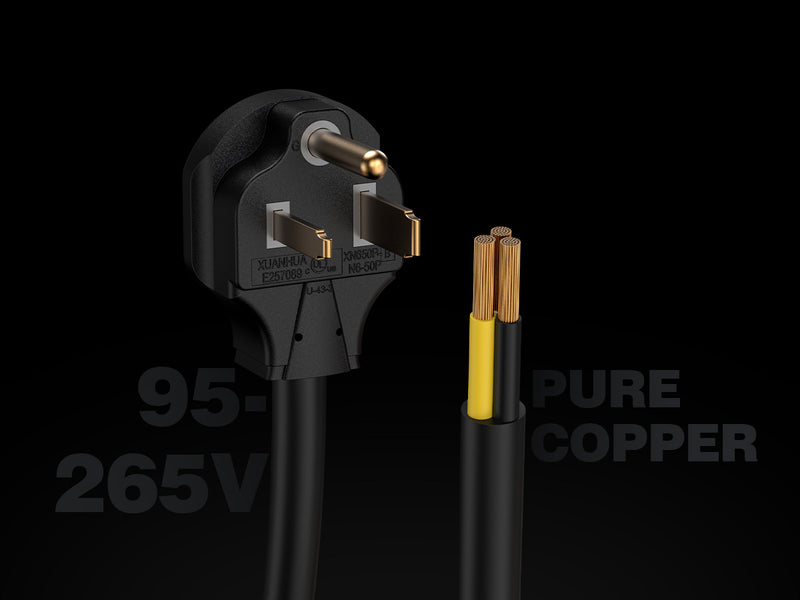

Power Factor Correction (PFC)

Get more from your machine with higher electrical efficiency and more stable performance across a 95-265V wide input range. PFC helps compensate for voltage fluctuation, supports stronger output on unstable power, and helps reduce stress on internal components for longer service life.

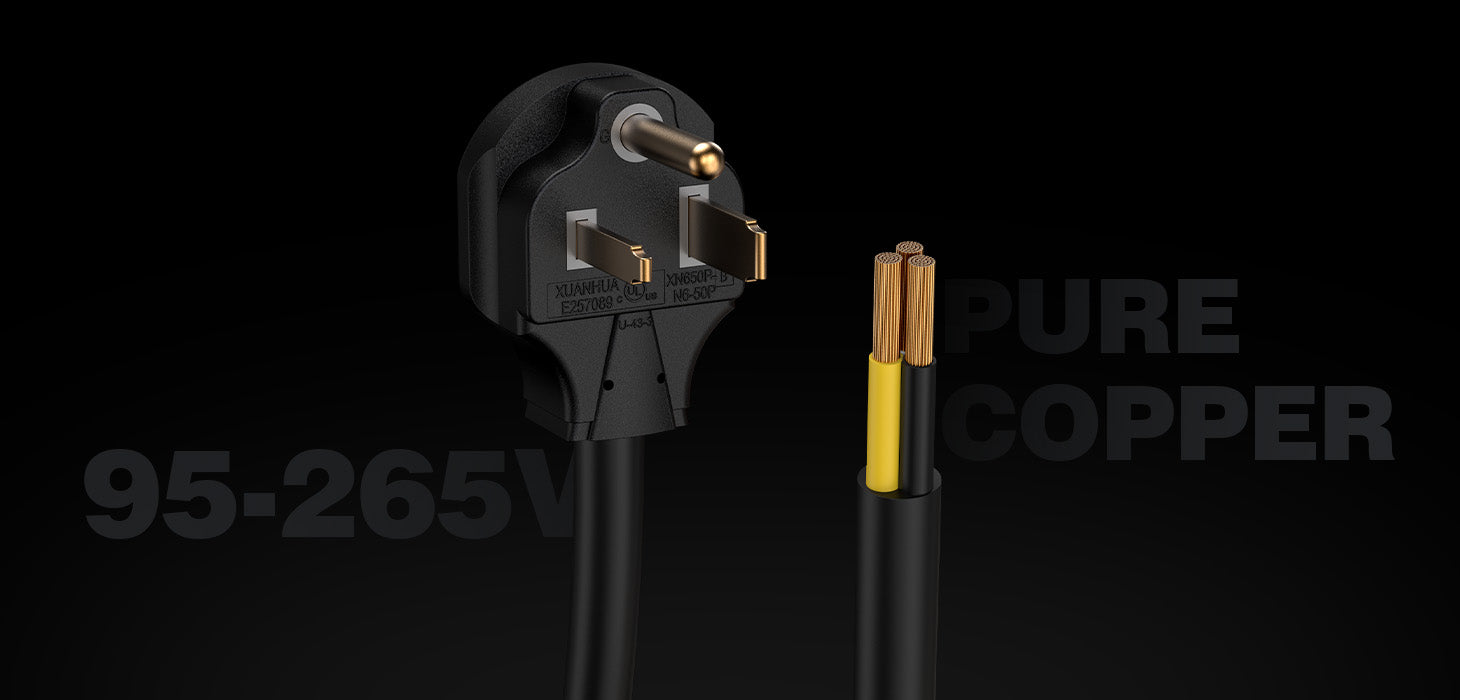

Wide Voltage
Wide Application
Wide Voltage
Wide Application

Pulse TIG Welding

Stainless Steel
Carbon Steel
Stainless Steel
Carbon Steel
Weld stainless steel with better heat control and cleaner results. Pulse TIG helps reduce distortion and makes thin stainless work easier to manage.
Handle carbon steel with steady arc control and strong weld quality. Pulse TIG helps focus the arc and makes out-of-position welding easier to control.

Advanced IGBT Inverter Technology

Get smoother arcs, higher efficiency, and consistent power in every bead. Our IGBT Inverter runs cooler and adapts faster to your movements, giving you the professional-grade reliability needed for modern welding.

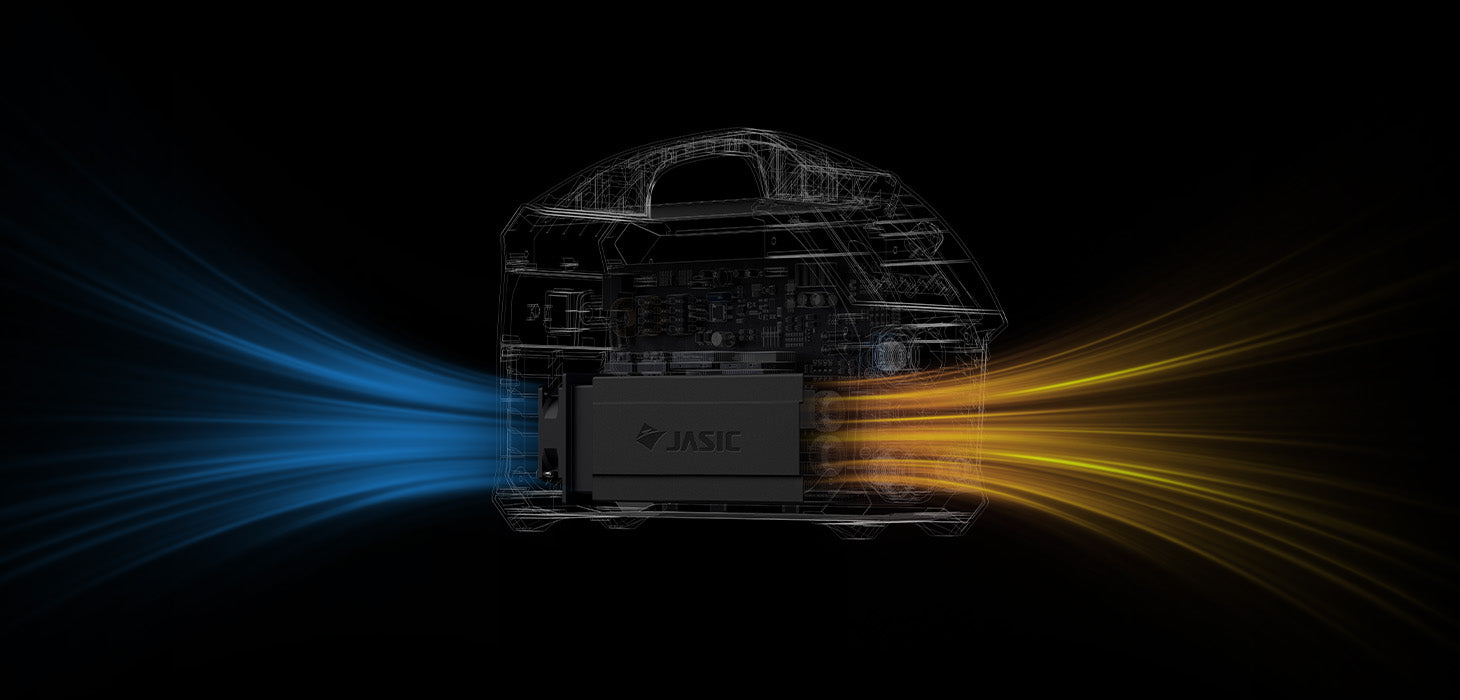

ABAP Tech

The active airflow design directs air through the machine while separating dust from key electronic components. This helps improve cooling efficiency, protect internal parts, and extend machine service life.

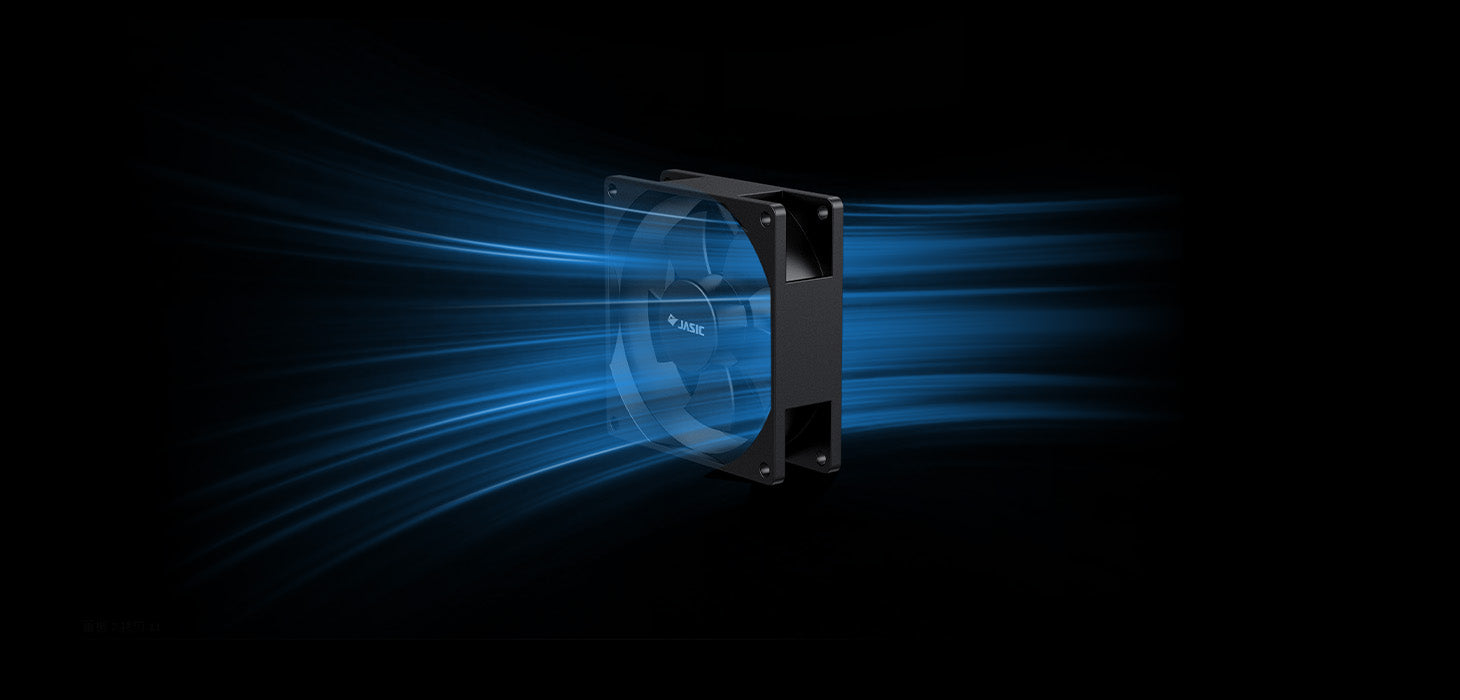

Smart Fan

By running only when necessary, this active cooling system slashes ambient noise, reduces power consumption, and minimizes dust intake—keeping your vital internal components pristine for a longer service.

Advanced MMA Features

Advanced MMA features help improve arc control and make Stick welding easier.

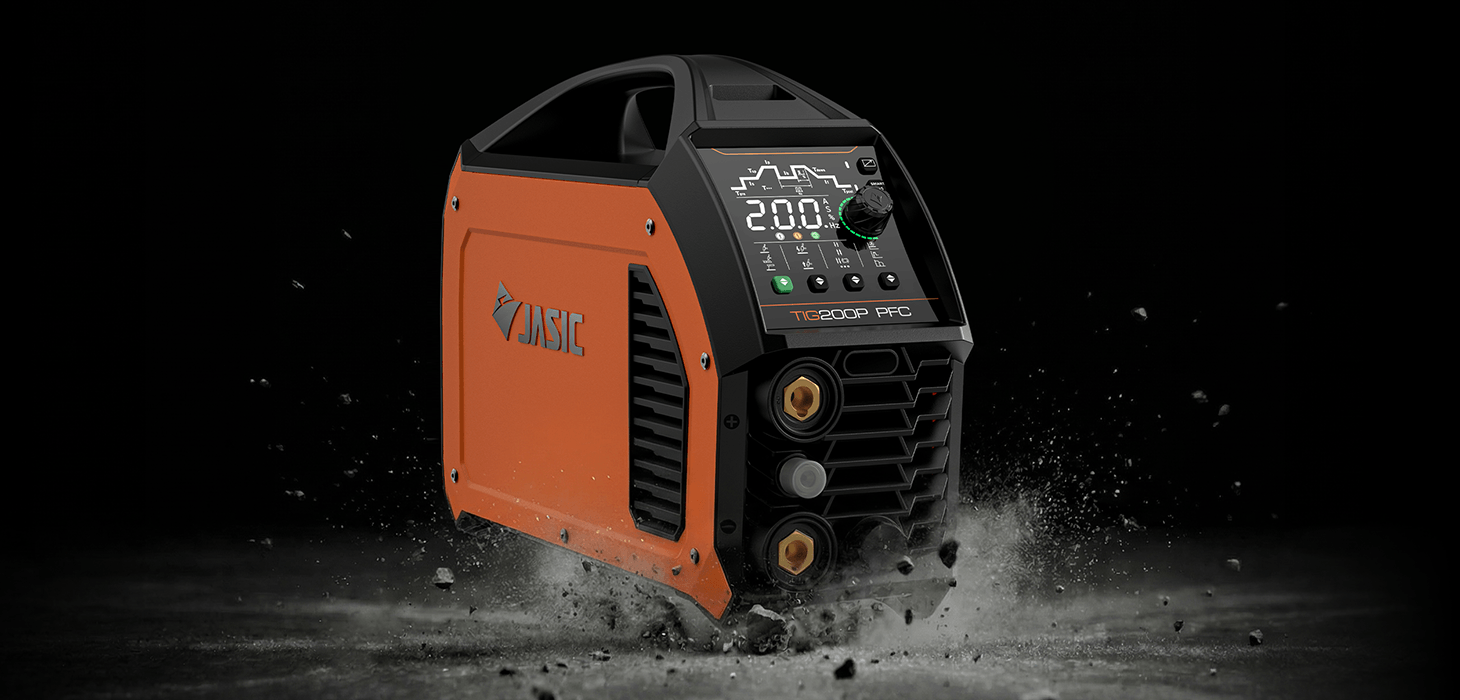

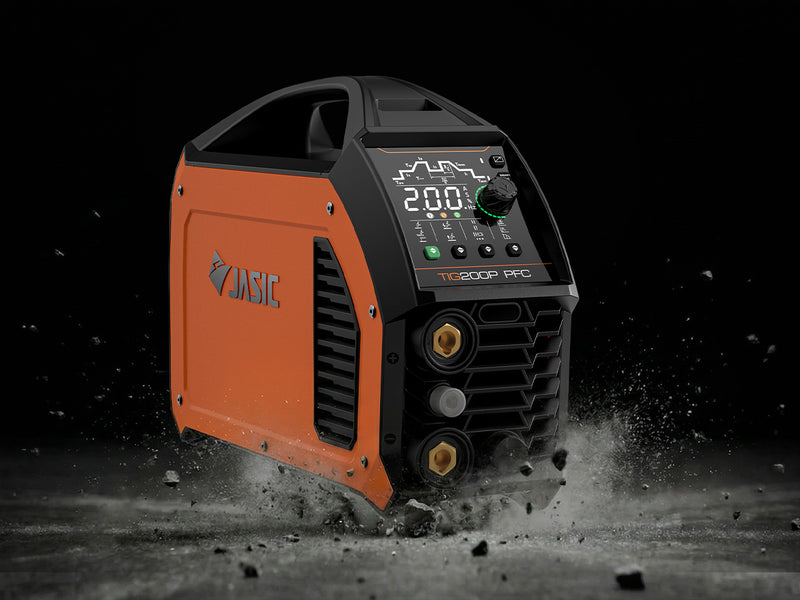

Built Tough

Built to handle daily shop work, transport, and jobsite movement. The durable housing and baked-on finish help protect the machine from wear, impact, and scratches over time

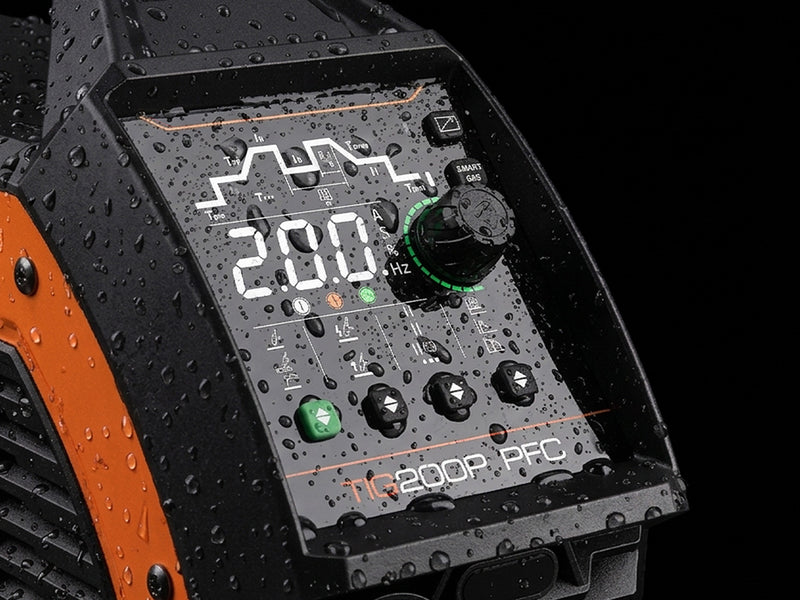

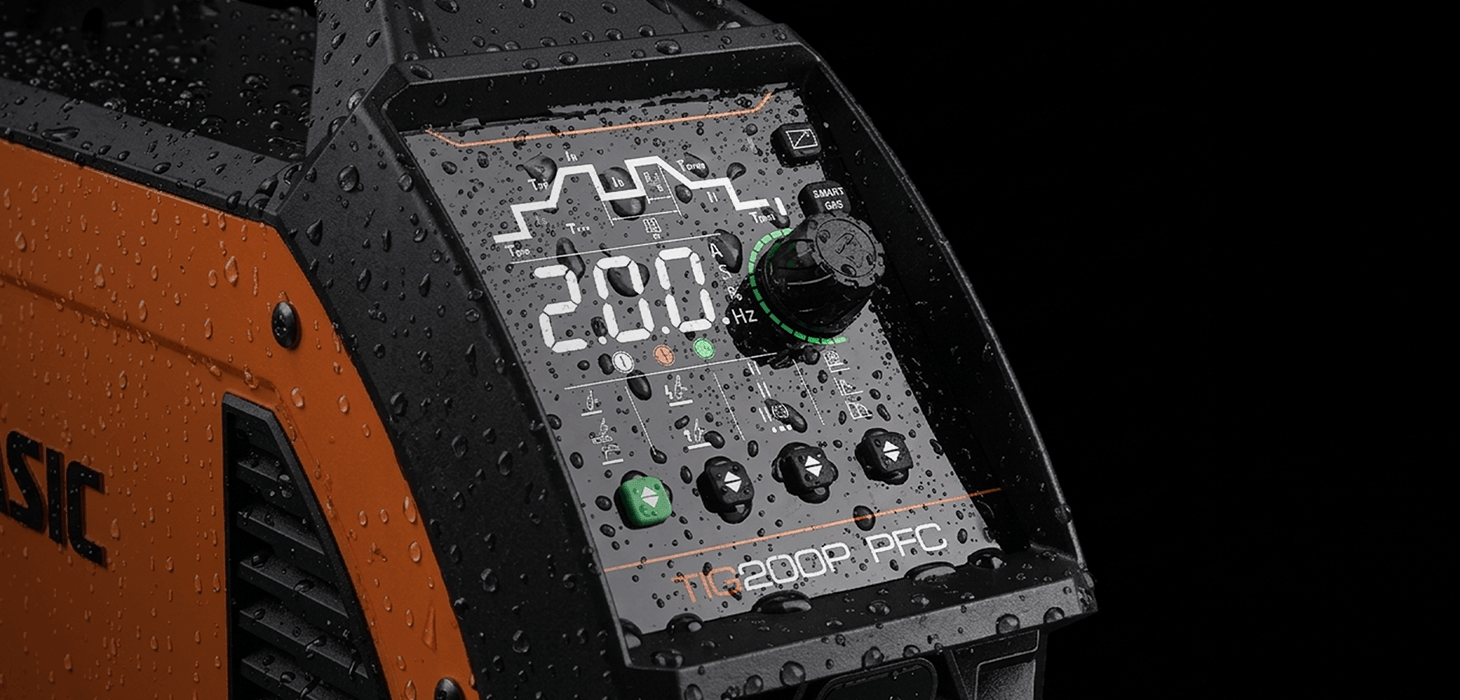

Waterproof

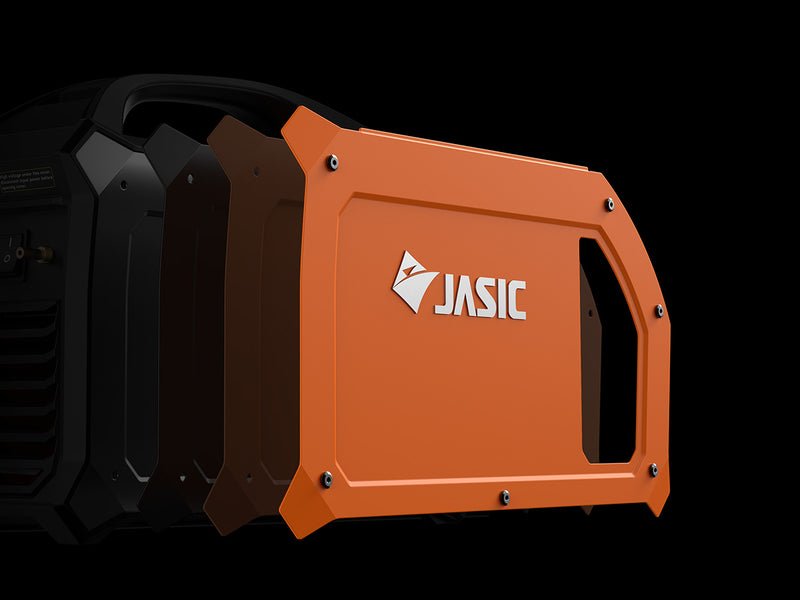

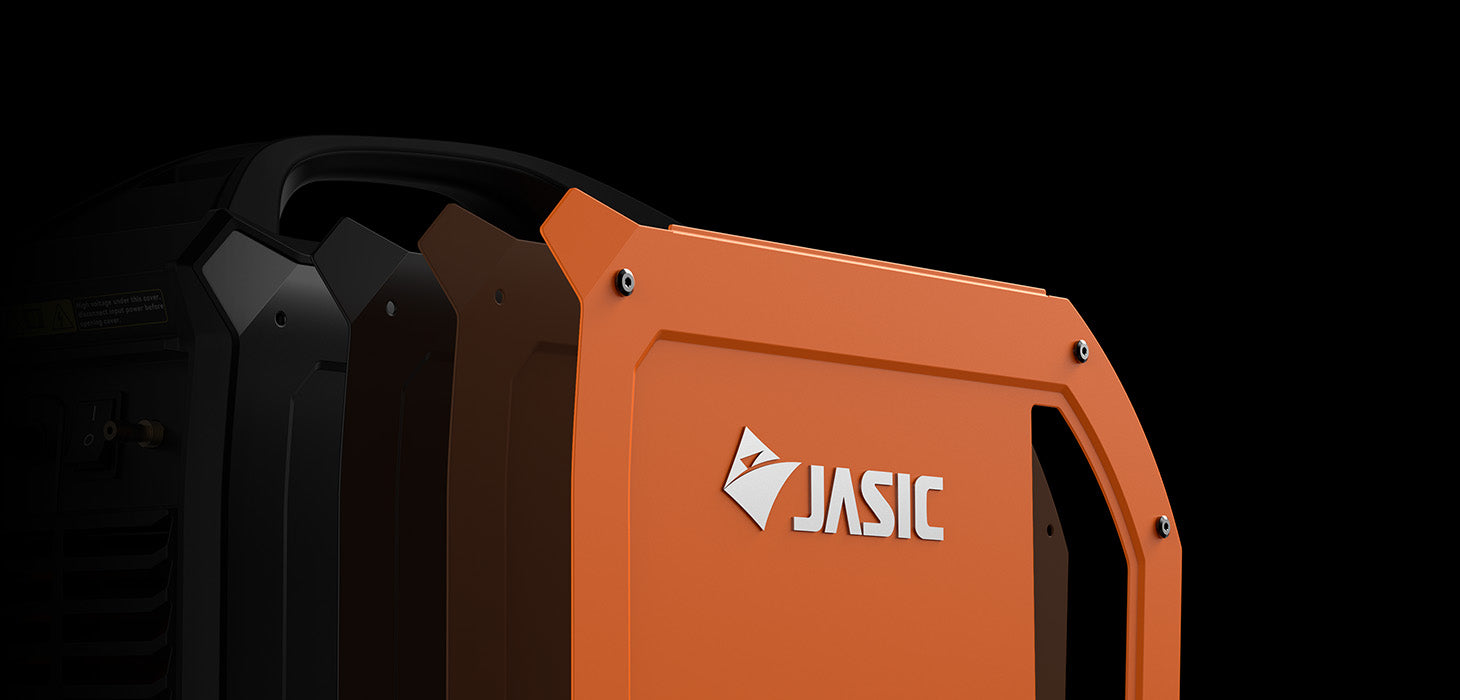

Durable Baked-On Finish
Impact-Resistant Housing
Waterproof
Durable Baked-On Finish
Impact-Resistant Housing

Extra Features

Smart Gas

Automatically optimizes post-flow time to save up to 40% argon

Overcurrent & Overheat Protection

Provides real-time protection against excessive current and temperature

Dash-Arc

Achieves 99.99% arc ignition success with 400% faster response

Specifications

Input Voltage

AC95-265V, Single-Phase

Ieff (A)

TIG: 14.9A @ 115V / 9.8A @ 230V

MMA: 15.8A @ 115V / 12.8A @ 230V

Imax (A)

TIG: 29.7A @ 115V / 19.5A @ 230V

MMA: 31.6A @ 115V / 25.6A @ 230V

Open Circuit Voltage (OCV)

68V

Open Circuit Voltage with VRD Active (V)

10.5V

Efficiency

84%

Power Factor

0.99

Protection Class

IP21S

Insulation Class

B

Rated Input Power (kVA)

TIG: 3.4 kVA @ 115V / 4.5 kVA @ 230V
MMA: 3.7 kVA @ 115V / 5.9 kVA @ 230V

Dinse Connector

35/50

Standard

AS 60974-1

Warranty

3 Years

Weight

19.78 lbs

Dimensions (LxWxH)

17.83" x 5.91" x 12.32"

Suitable Materials

MMA: Mild Steel, Stainless Steel, Cast Iron
TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze

Welding Capacity

Stainless steel: up to 1/4 in — DC TIG / DC Pulse
Carbon steel: up to 3/8 in — DC TIG or MMA

TIG Ignition Type

High-Frequency TIG
Lift TIG

TIG Current Range

5–160A @ 115V / 5–200A @ 230V

TIG Voltage Range

10.2–16.4V @ 115V / 10.2–18V @ 230V

TIG Duty Cycle @ 25%

160A / 16.4V @ 115V
200A / 18V @ 230V

TIG Duty Cycle @ 60%

103A / 14.1V @ 115V
129A / 15.2V @ 230V

TIG Duty Cycle @ 100%

80A / 13.2V @ 115V
100A / 14V @ 230V

TIG DC Pulse Current Range

5–160A @ 115V / 5–200A @ 230V

TIG DC Pulse Frequency

0.5-200Hz

MMA Current Range

10–120A @ 115V / 10–180A @ 230V

MMA Voltage Range

20.4–24.8V @ 115V / 20.4–27.2V @ 230V

MMA Duty Cycle @ 25%

120A / 24.8V @ 115V

180A / 27.2V @ 230V

MMA Duty Cycle @ 60%

77A / 23.1V @ 115V


116A / 24.6V @ 230V

MMA Duty Cycle @ 100%

60A / 22.4V @ 115V

90A / 23.6V @ 230V

Hot Start Current Range

0-60A

Arc Force Range

0-60A
