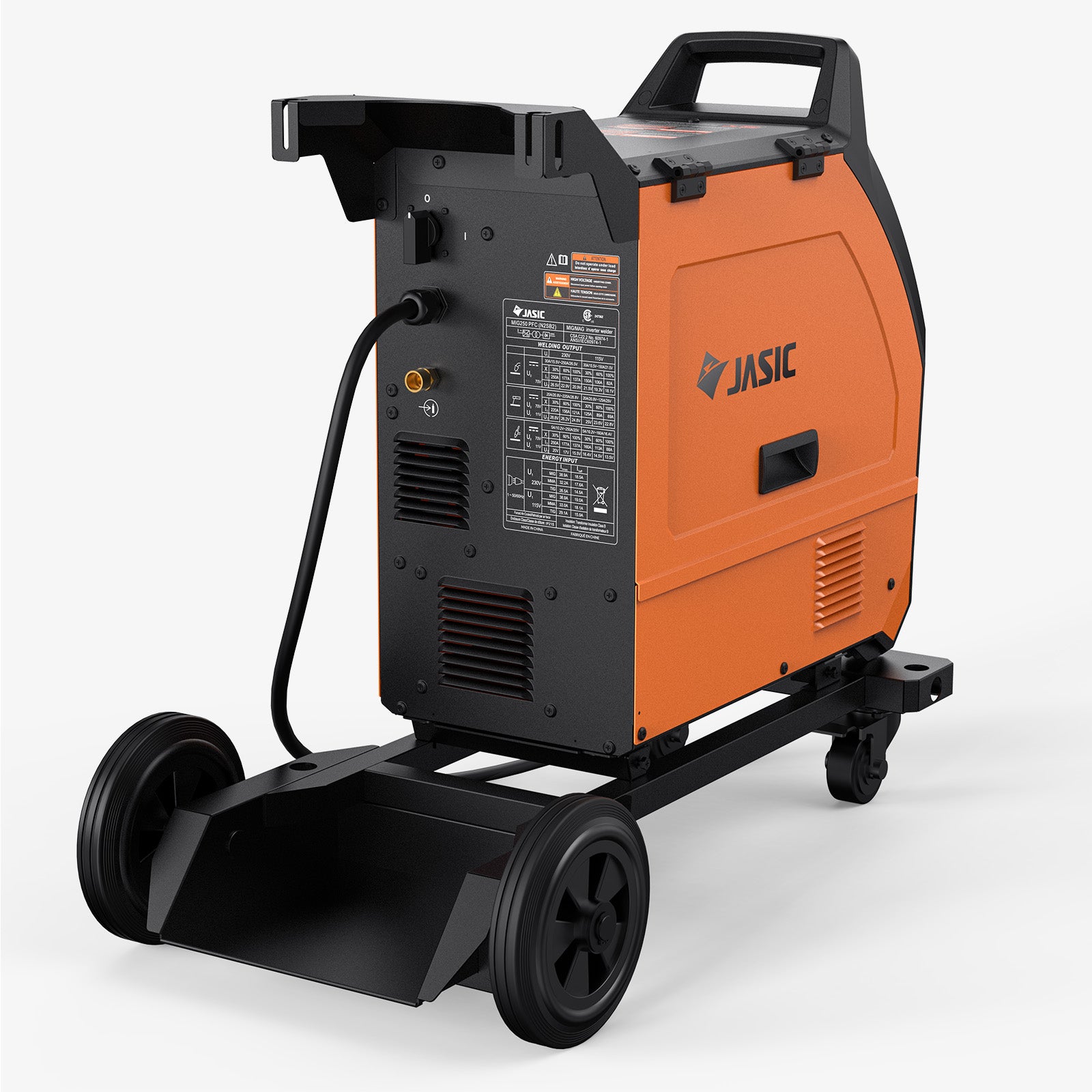

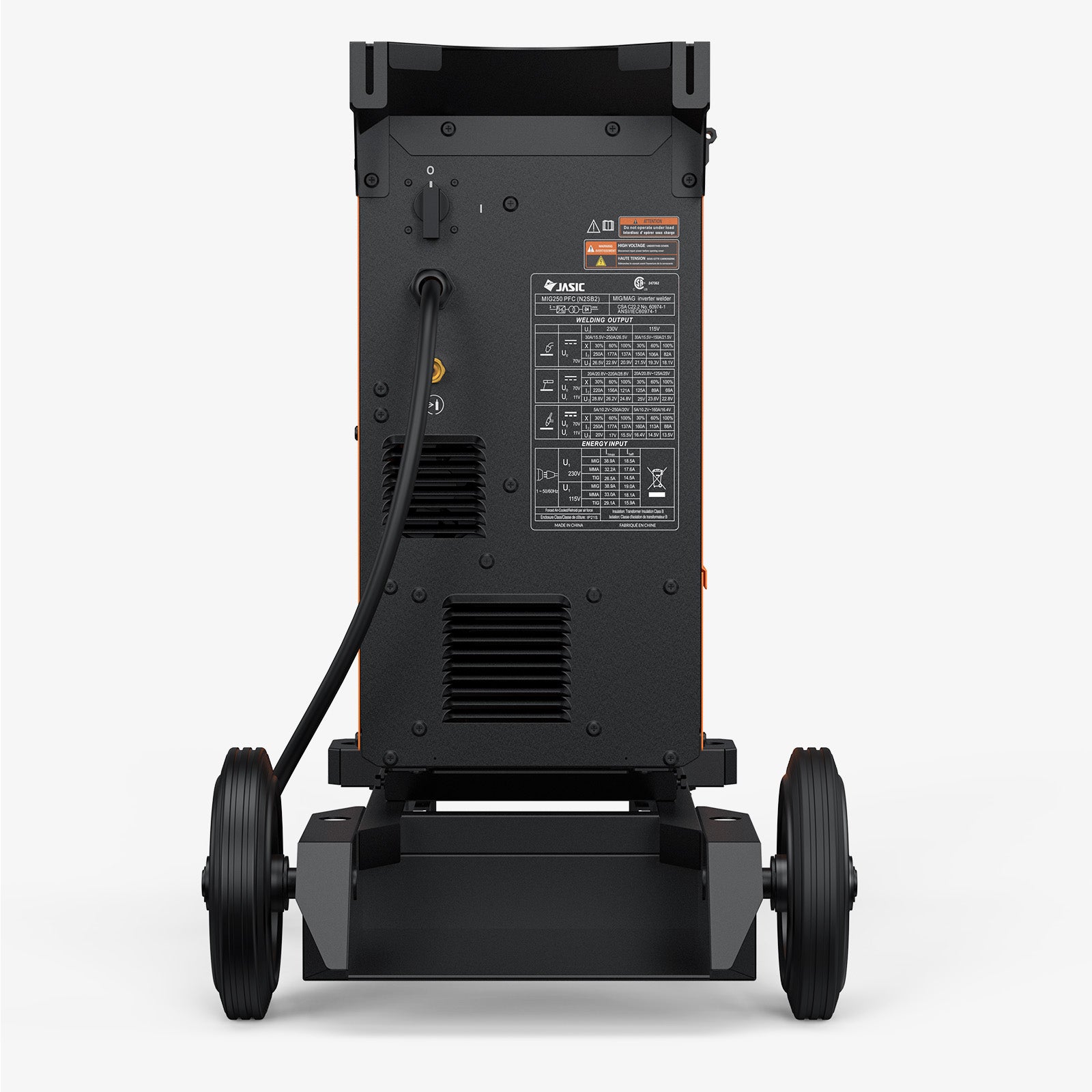

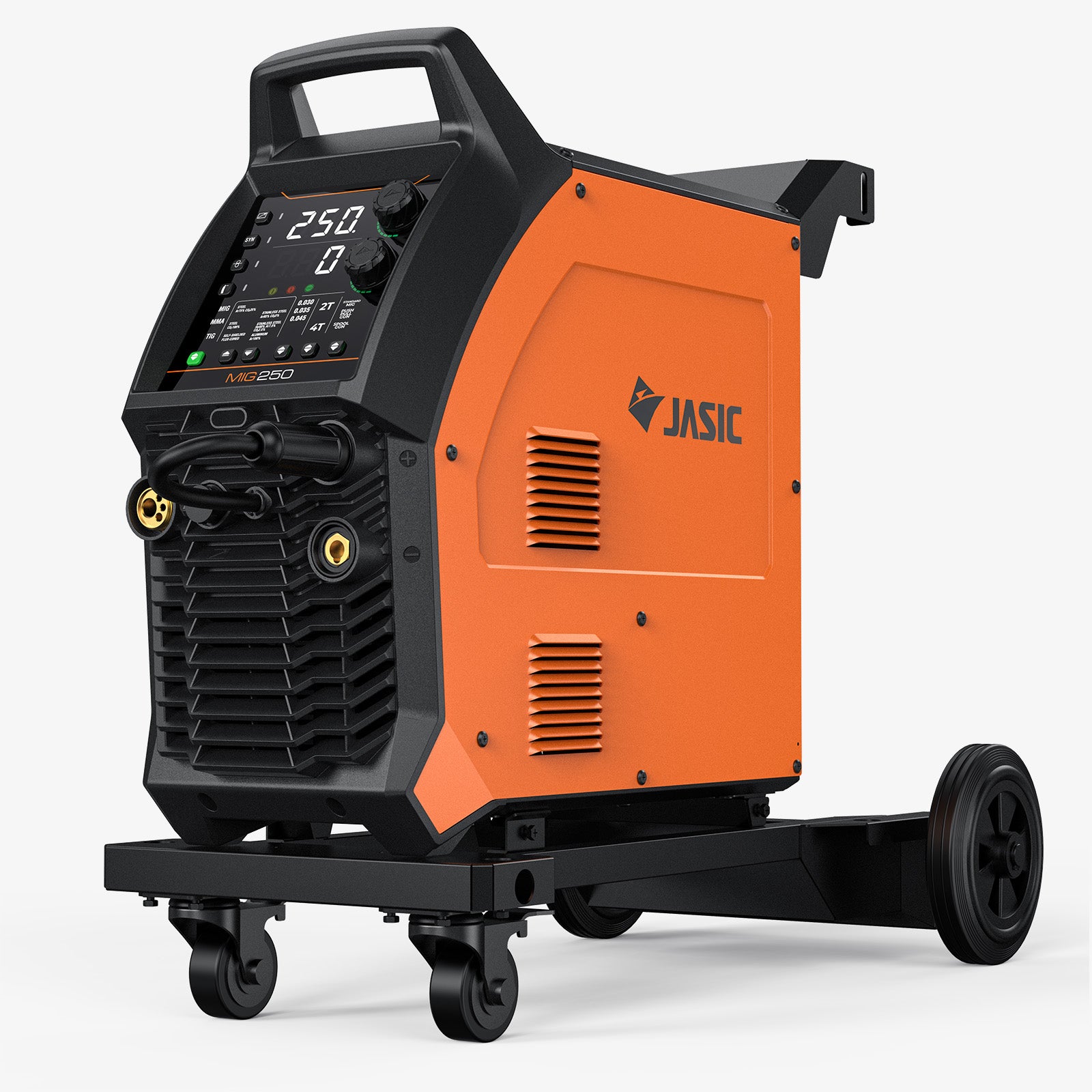

JASIC EVO20® MIG250 PFC 250A Lift TIG/Stick/MIG Welder
JASIC MIG250 PFC MIG welder delivers a powerful 250A output. Features a professional 4-geared wire drive for zero slipping and a cart with a cylinder holder for easy workshop mobility.
Key Features
PFC: Handle unstable input power better and keep welding more smoothly on 95V-265V
Multi-Process: Cover MIG, flux core, Lift TIG, MMA, and Spot MIG jobs with one machine
Fast Setup: Dial in settings faster with synergic control and cut down guesswork
Aluminum Ready: Use spool gun and push-pull gun support for better aluminum welding
Smooth Feeding: Get steadier wire feeding with a 4 geared wire drive system
Patented ABAP Technology: Improve cooling efficiency, protect key electronic components from dust, and help extend machine life
Easy Transport: Roll it where you need it for shop floors, service bays, and onsite jobs
In The Box
- 1 x V-Knurled Drive Roll, 0.030-0.035 in (0.8-1.0 mm)
- 1 x Work Clamp with Cable, 300A, 13 ft (4 m), 2 AWG (35 mm²), 35-50 Dinse Connector
- 1 x Electrode Holder with Cable, 300A, 13 ft (4 m), 2 AWG (35 mm²), 35-50 Dinse Connector
- 1 x Argon Flowmeter Regulator
- 1 x MB 24 MIG Gun, 9.8 ft (3 m), 250A
- 2 x Hose Clamps
- 1 x 9-Pin Aviation Plug, Male, 5A / 500V
- 1 x Gas Hose, 8 ft (2.5 m), Black
- 6 x Contact Tips: 0.030 / 0.035 / 0.045 in (0.8 / 1.0 / 1.2 mm), 2 each
- 2 x Gas Nozzles
- 1 x User Manual
Free Shipping on Orders Over $100
3-Year Warranty on All Equipment
30-Day Money-Back Guarantee
Full Customer & Technical Support
JASIC EVO20® MIG250 PFC 250A Lift TIG/Stick/MIG Welder
Extra Features
4-Roll Wire Drive
Get stronger, more stable wire feeding with less slipping. The 4-roll drive system works especially well with flux-cored wire and longer feeding distances
Large Spool Capacity
Support 5kg(11 lb), 15kg (33 lb) wire spools for longer run time. Larger spool capacity reduces changeovers and helps keep productivity up on continuous work
LED-lit Cabinet
Changing wire is easy even in a dark workshop thanks to the internal LED light. A built-in box inside the cabinet to keep your spare contact tips and rollers organized and within reach.
Quick Factory Reset
Reset settings instantly and start fresh. One-click factory reset helps recover from setup mistakes fast, so you can get back to welding without wasting time
Auto-Sleep Mode
Reduce idle power draw automatically when the machine is not welding. Auto-sleep helps cut energy waste and keeps standby consumption as low as 4-14W
Overheat & Overcurrent & Overvoltage Protection
Protect the machine during demanding welding work with built-in overheat, overcurrent, and overvoltage protection. This helps protect internal components
Specifications
Input Voltage
AC95V-265V, Single-Phase
Ieff (A)
MIG: 19.0A @ 115V / 18.5A @ 230V
TIG: 15.9A @ 115V / 14.5A @ 230V
MMA: 18.1A @ 115V / 17.6A @ 230V
Imax (A)
MIG:47A
TIG:30A
ARC:45A
Open Circuit Voltage (OCV)
70V
Open Circuit Voltage with VRD Active (V)
11V
Efficiency
>80%
Power Factor
0.99
Protection Class
IP21S
Insulation Class
B
Rated Input Power (kVA)
MIG: 4.5 kVA @ 115V / 8.9 kVA @ 230V
MMA: 3.8 kVA @ 115V / 7.4 kVA @ 230V
TIG: 3.3 kVA @ 115V / 6.1 kVA @ 230V
Dinse Connector
35/50
Standard
AS 60974-1
Warranty
3 Years
Weight
95.9 lbs
Dimensions (LxWxH)
36.2" x 18.9" x 29.7"
Suitable Materials
Carbon Steel,Stainless Steel,Aluminum,
Magnesium
MIG Current Range
30-150A @ 115V / 30-250A @ 230V
MIG Voltage Range
15.5-21.5V @ 115V / 15.5-26.5V @ 230V
MIG Duty Cycle @ 30%
150A / 21.5V @ 115V / 250A / 26.5V @ 230V
MIG Duty Cycle @ 60%
106A / 19.3V @ 115V / 177A /22.9V@230V
MIG Duty Cycle @ 100%
82A / 18.1V @ 115V / 137A / 20.9V @ 230V
MIG Wire Spool Sizes
15 kg (33.07 lb),5 kg (11.02 lb)
Wire feed speed range(inch/min)
79~551@115V / 79~709@230V
TIG Ignition Type
Lift TIG
TIG Current Range
20-125A @ 115V / 20-220A @ 230V
TIG Voltage Range
20.8-25V @ 115V / 20.8-28.8V @ 230V
TIG Duty Cycle @ 30%
125A / 25V @ 115V / 220A / 28.8V @ 230V
TIG Duty Cycle @ 60%
89A / 23.6V @ 115V / 156A / 26.2V @ 230V
TIG Duty Cycle @ 100%
69A / 22.8V @ 115V / 121A / 24.8V @ 230V
MMA Current Range
5-160A @ 115V / 5-220A @ 230V
MMA Voltage Range
10.6-16.4V @ 115V / 10.2-20V @ 230V
MMA Duty Cycle @ 30%
160A / 16.4V @ 115V / 220A / 20V @ 230V
MMA Duty Cycle @ 60%
113A / 14.5V @ 115V / 177A / 17V @ 230V
MMA Duty Cycle @ 100%
88A / 13.5V @ 115V / 137A / 15.6V @ 230V
FAQs
What welding processes does MIG250 PFC support?
MIG250 PFC supports gas MIG, flux core MIG, Lift TIG, and MMA/Stick welding. It also supports an optional spool gun for aluminum welding, giving you one machine for fabrication, repair, installation work, and daily shop use.
Does PFC help with unstable power or generator use?
Yes. PFC helps MIG250 PFC handle unstable input power more effectively and supports a wider input voltage range, making it easier to run on fluctuating grid power or generator power. This helps improve welding stability for field work, outdoor jobs, and locations where power conditions are less predictable.
What does the synergic function do?
The synergic function helps simplify setup. After you choose the wire size and basic settings, MIG250 PFC helps match welding parameters more easily, which reduces trial and error and helps you get more stable, more consistent results.
Can MIG250 PFC weld aluminum?
Yes. MIG250 PFC supports an optional spool gun for aluminum welding. This makes it a good fit for aluminum repair, light fabrication, and jobs that need better wire feeding with softer wire.
What materials can MIG250 PFC weld?
MIG250 PFC is designed for carbon steel, stainless steel, aluminum, and magnesium, depending on the welding process and setup used. This makes it a practical machine for repair work, fabrication, and broader shop applications.
What is the benefit of the 4-roll wire drive system?
The 4-roll wire drive system gives you stronger and more stable wire feeding with less slipping. This is especially useful when running flux-cored wire or handling longer wire feeding distance during daily welding work.
What does adjustable inductance do?
Adjustable inductance helps fine-tune arc characteristics to improve weld performance. It gives you more control over arc behavior, which can help improve welding feel, bead appearance, and overall stability on different jobs.
What thickness range is MIG250 PFC recommended for?
MIG250 PFC is positioned for a recommended welding thickness range of 1-12 mm, depending on the welding process, material, and setup used.
What warranty does MIG250 PFC come with?
MIG250 PFC comes with a 3-year warranty for added peace of mind. For full warranty terms, coverage details, and claim instructions, please visit our Warranty Policy page.
Do you offer technical support after purchase?
Yes. If you need help with setup, operation, or troubleshooting, our support team is here to help. You can find contact details and support information on our Contact Us page.
